Architectural Point Light

AD14

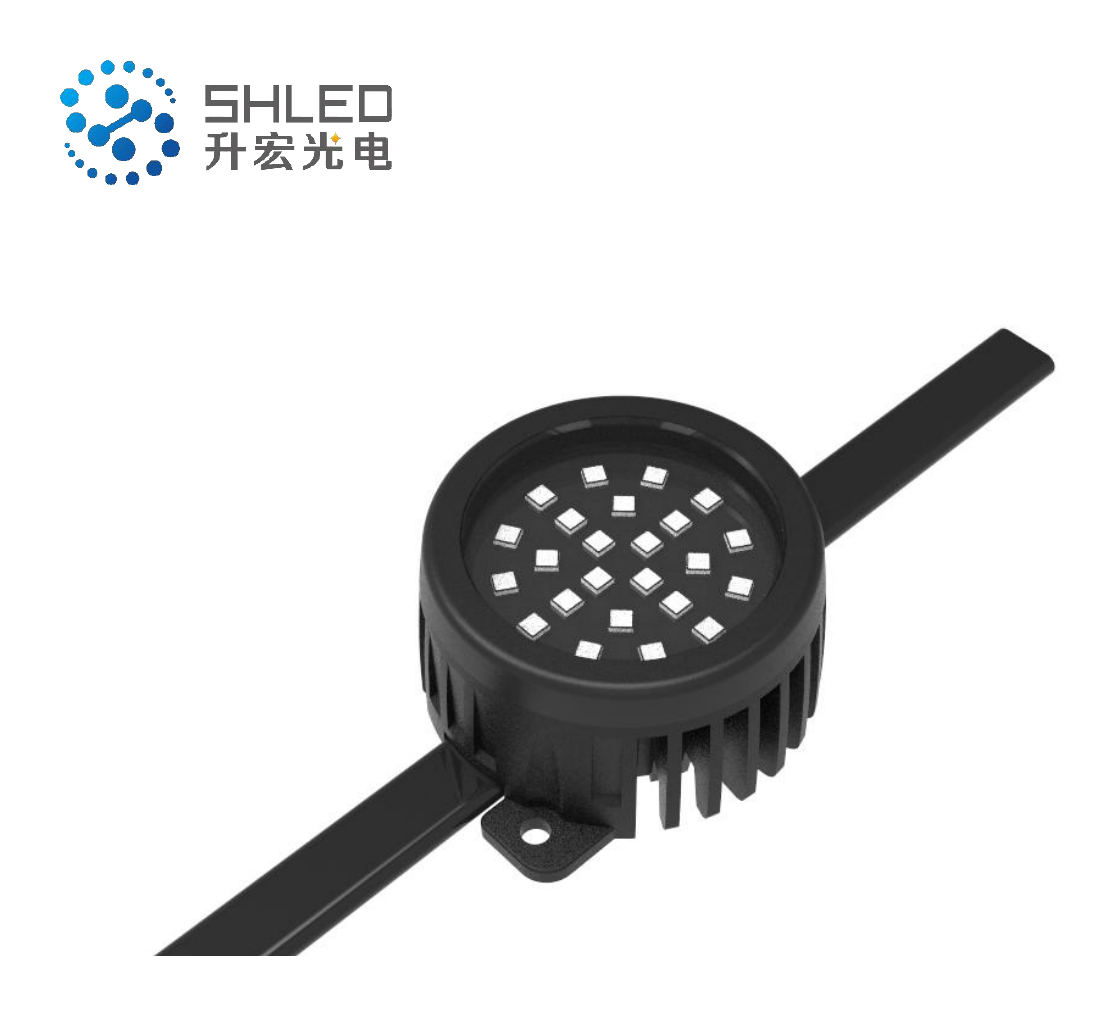

High-brightness 48V RGB architectural point light for large-pixel and daytime media-display applications, with 5.5W output, SPI control, 100° beam, IK07 impact resistance and IP66 protection.

Send Your Project
AD14

Model data

Technical specifications

Product familyArchitectural Lighting
SeriesAD
Voltage48V
Rated power5.5W
ControlSPI
Light outputRGB
IP ratingIP66
DimensionsØ62 × 32.5 mm
Beam angle100°

Mechanical reference

Dimension drawing & engineering notes

AD14

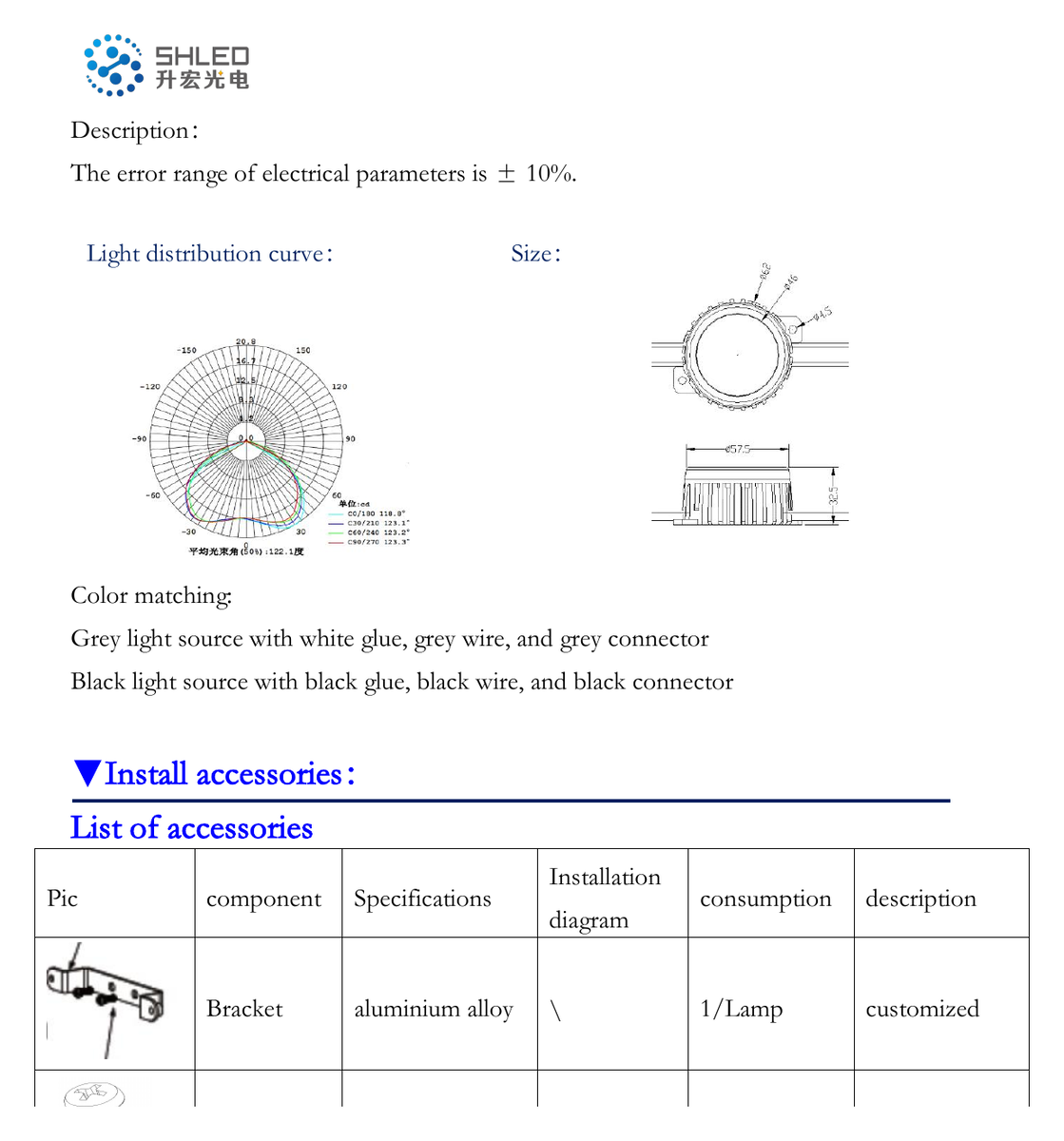

AD14 · Reference dimension drawing

Configuration matrix

Available model configurations

Light outputVoltageRated powerControl
RGB48V DC5.5WSPI

Engineering reference

Technical information & downloads

LED / light source

3535 RGB × 24 (Lumileds platform).

Cable / connector

2 × 1.2 mm² power + 2 × 0.3 mm² SPI signal wiring.

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
