Architectural Flood Lights

Use current model data to compare product type, voltage, power, control mode, light output, optics and media parameters.

Product architecture

23 models

Architectural flood-light family for facades, bridges, sculptures, entrances and landmark applications.

Current models: TG01–TG07, TG10–TG21 and TG26–TG29.

Use the model cards below to compare voltage, power, control and optical options. Open each model for its full technical page.

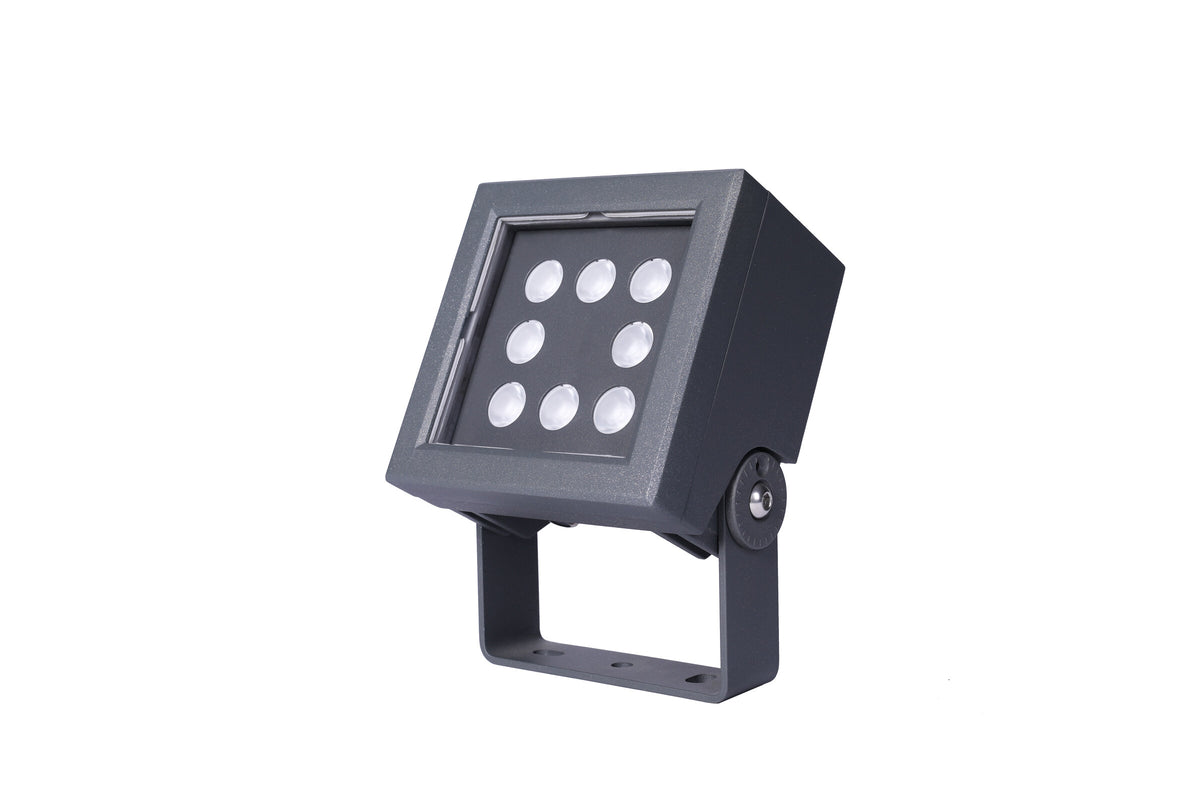

SHLED TG13 flood light product reference
Reference product

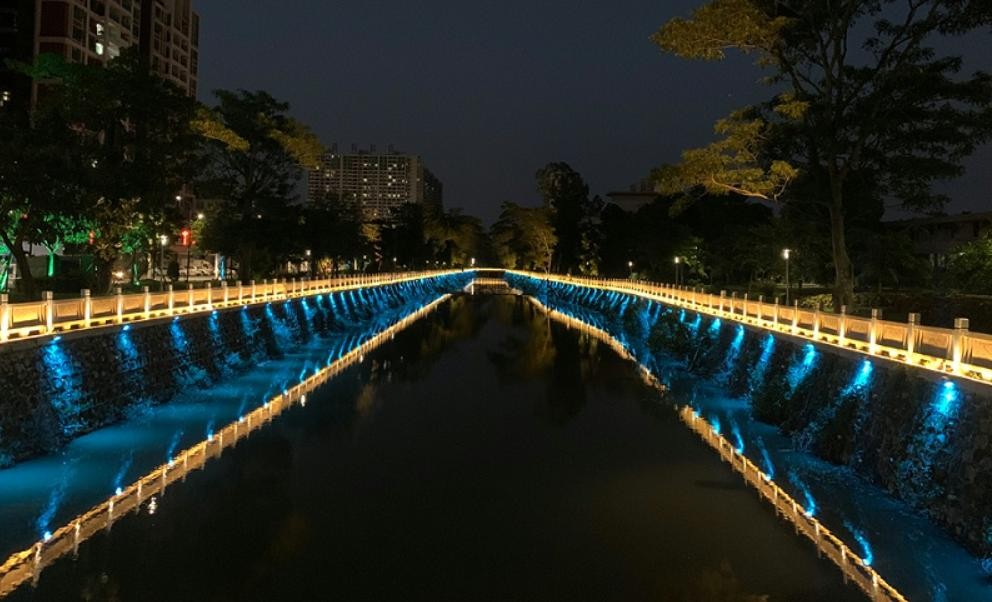

SHLED flood lighting application reference
Application reference

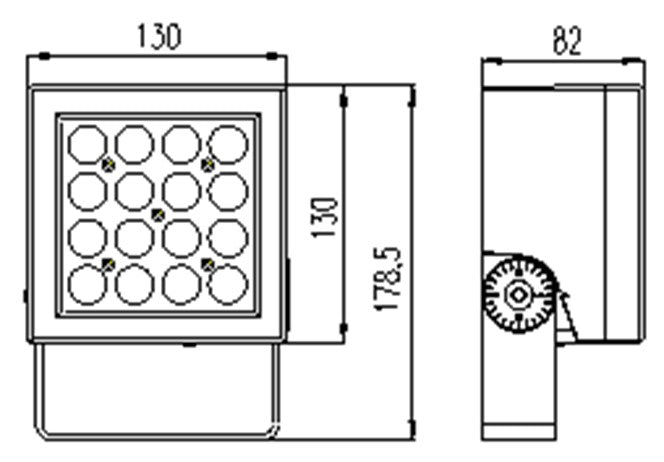

SHLED flood light dimension and structure reference
Engineering reference

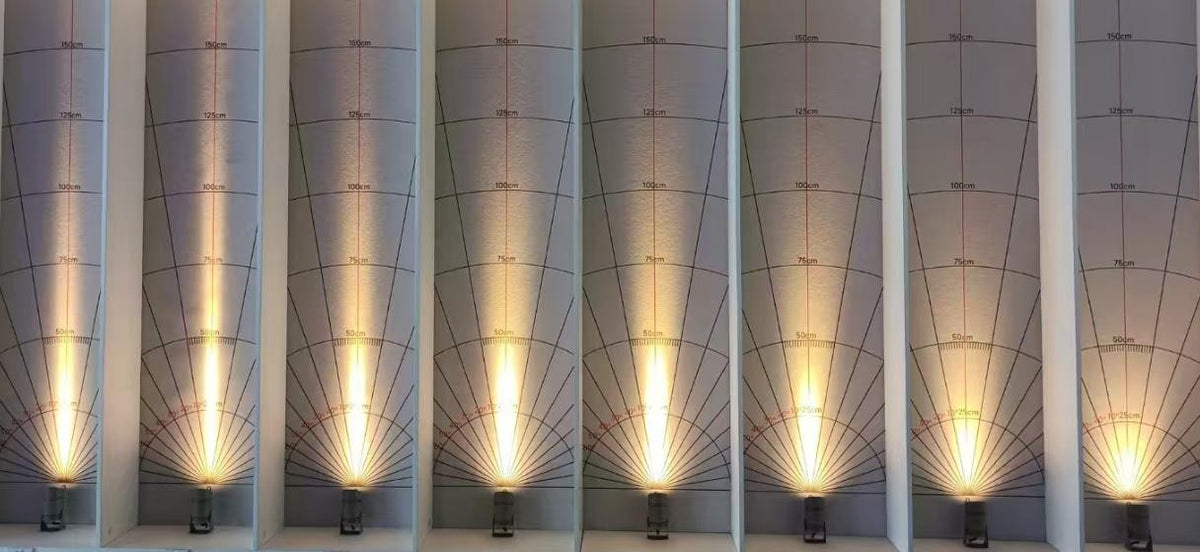

SHLED flood light beam effect reference
Light effect reference

Applications

Facade accentsBridgesSculpturesEntrancesLandmarks

Engineering focus

Voltage architectureThermal performanceBeam selectionBracket aimingOutdoor protection
← Products & Systems

Each model opens its own technical page. Final tender and project specifications follow the latest approved technical submittal.

Send Your Project →

Model directory

Compare models within this product family.

Filter and compare models by electrical, optical, mechanical and media parameters, then open a model for detailed engineering information.

23models

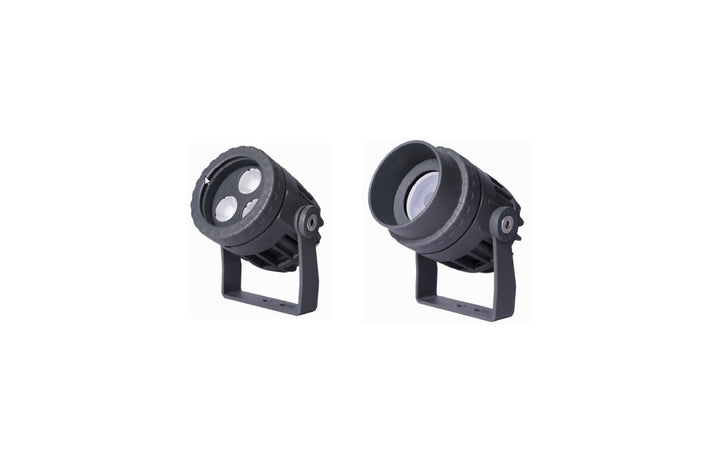

TG01
Architectural Flood Light

TG01

Voltage24V
Rated power9.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ66 × 80 × 97 mm

TG01 architectural flood-light reference platform with 24V DC input, 9W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

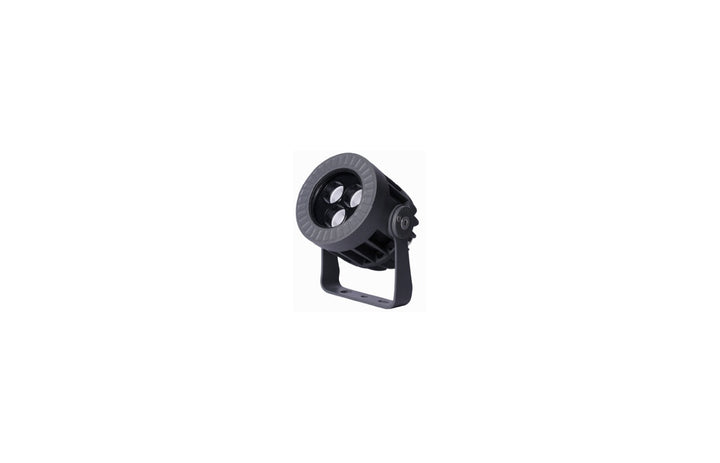

TG02
Architectural Flood Light

TG02

Voltage24V
Rated power9.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ85 × 96 × 115 mm

TG02 architectural flood-light reference platform with 24V DC input, 9W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

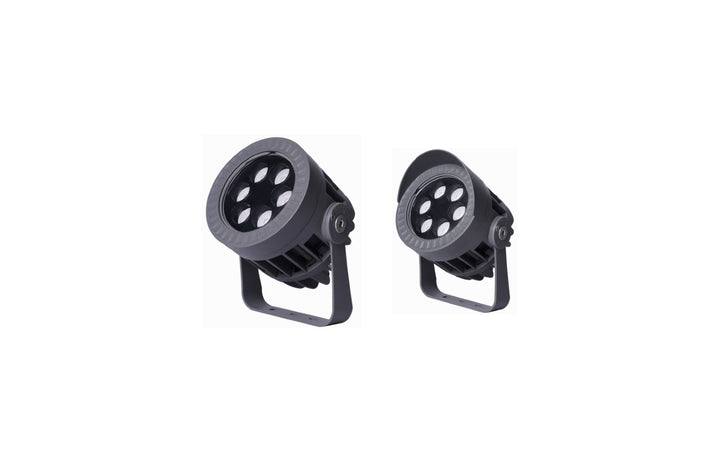

TG03
Architectural Flood Light

TG03

Voltage24V
Rated power18.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ110 × 119 × 153 mm

TG03 architectural flood-light reference platform with 24V DC input, 18W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

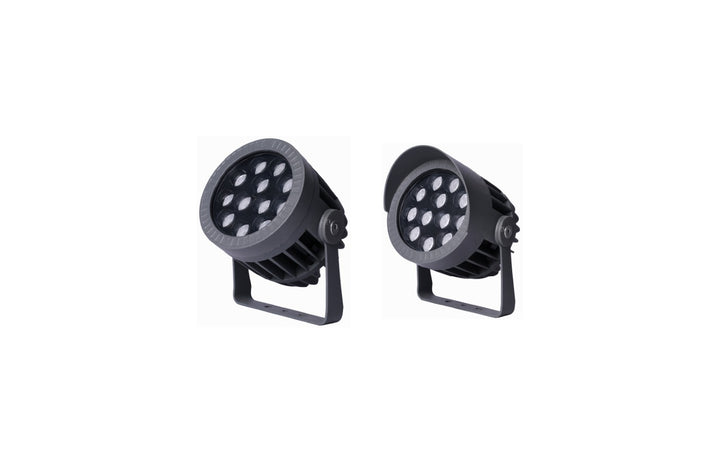

TG04
Architectural Flood Light

TG04

Voltage24V
Rated power24.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ130 × 136 × 169 mm

TG04 architectural flood-light reference platform with 24V DC input, 24W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

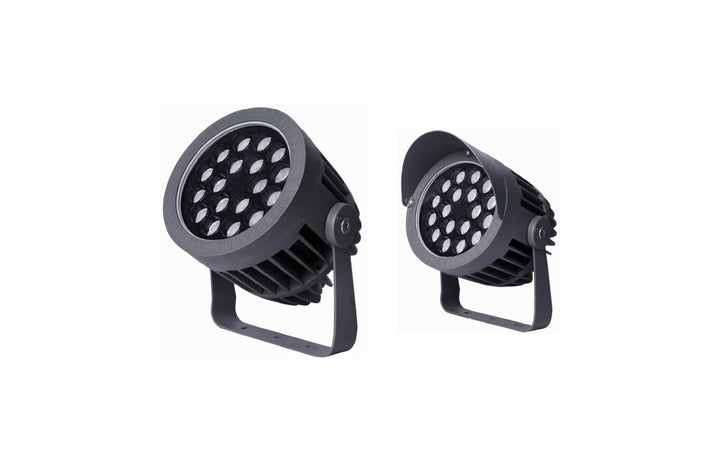

TG05
Architectural Flood Light

TG05

Voltage24V
Rated power48.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ160 × 166 × 213 mm

TG05 architectural flood-light reference platform with 24V DC input, 48W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →
TG06
Architectural Flood Light

TG06

Voltage24V
Rated power72.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ180 × 180 × 233 mm

TG06 architectural flood-light reference platform with 24V DC input, 72W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

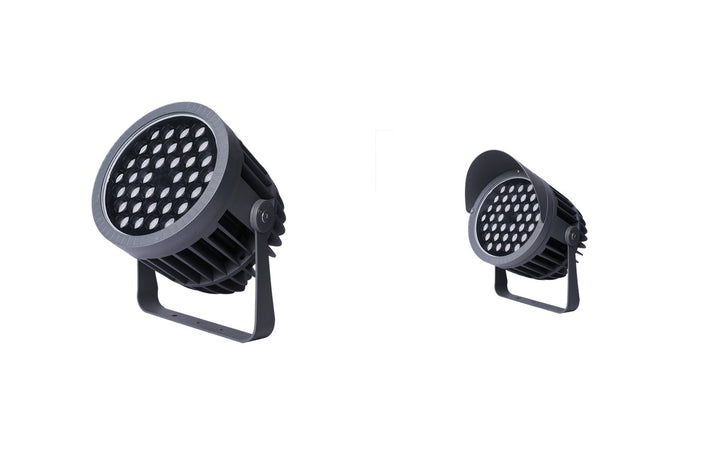

TG07
Architectural Flood Light

TG07

Voltage220V
Rated power100.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ210 × 216 × 268 mm

TG07 architectural flood-light reference platform with AC220V input, 100W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

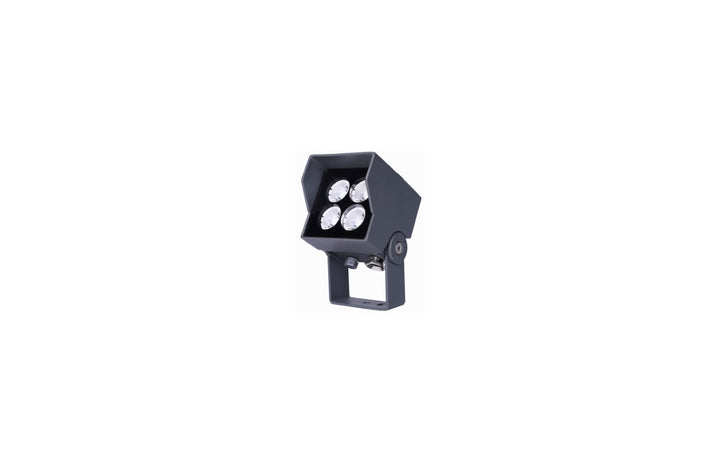

TG10
Architectural Flood Light

TG10

Voltage24V
Rated power9.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions45 × 56 × 65 mm

TG10 architectural flood-light reference platform with 24V DC input, 9W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

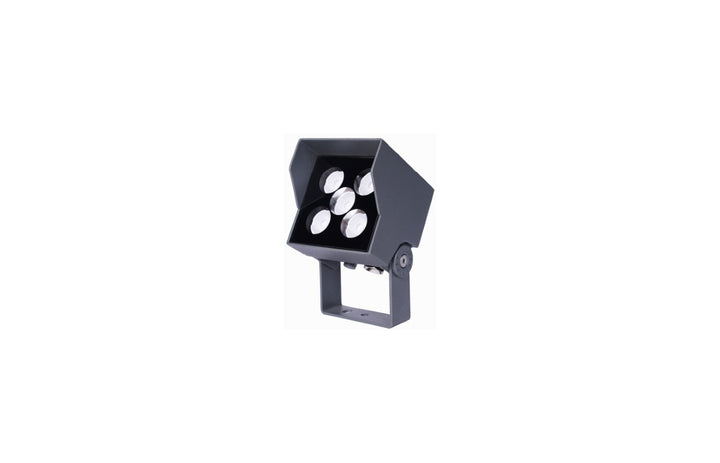

TG11
Architectural Flood Light

TG11

Voltage24V
Rated power15.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions80 × 80 × 85 mm

TG11 architectural flood-light reference platform with 24V DC input, 15W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

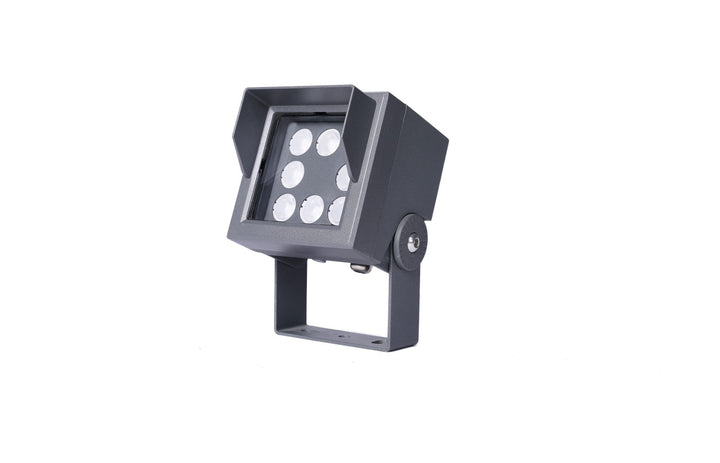

TG12
Architectural Flood Light

TG12

Voltage24V
Rated power24.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions105 × 80 × 150 mm

TG12 architectural flood-light reference platform with 24V DC input, 24W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

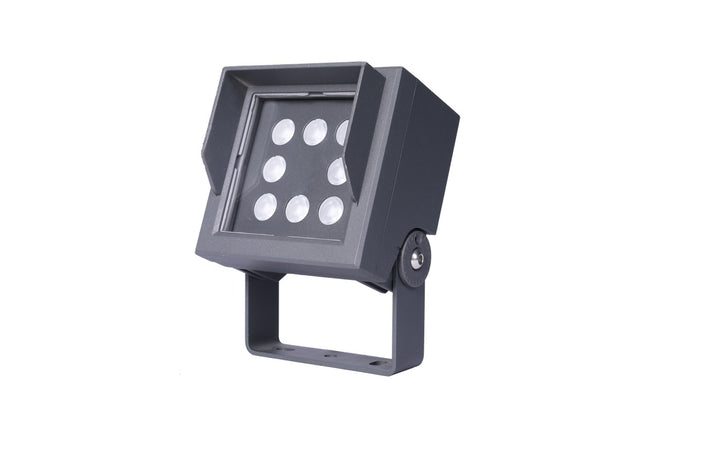

TG13
Architectural Flood Light

TG13

Voltage24V
Rated power36.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions130 × 82 × 178 mm

TG13 architectural flood-light reference platform with 24V DC input, 36W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

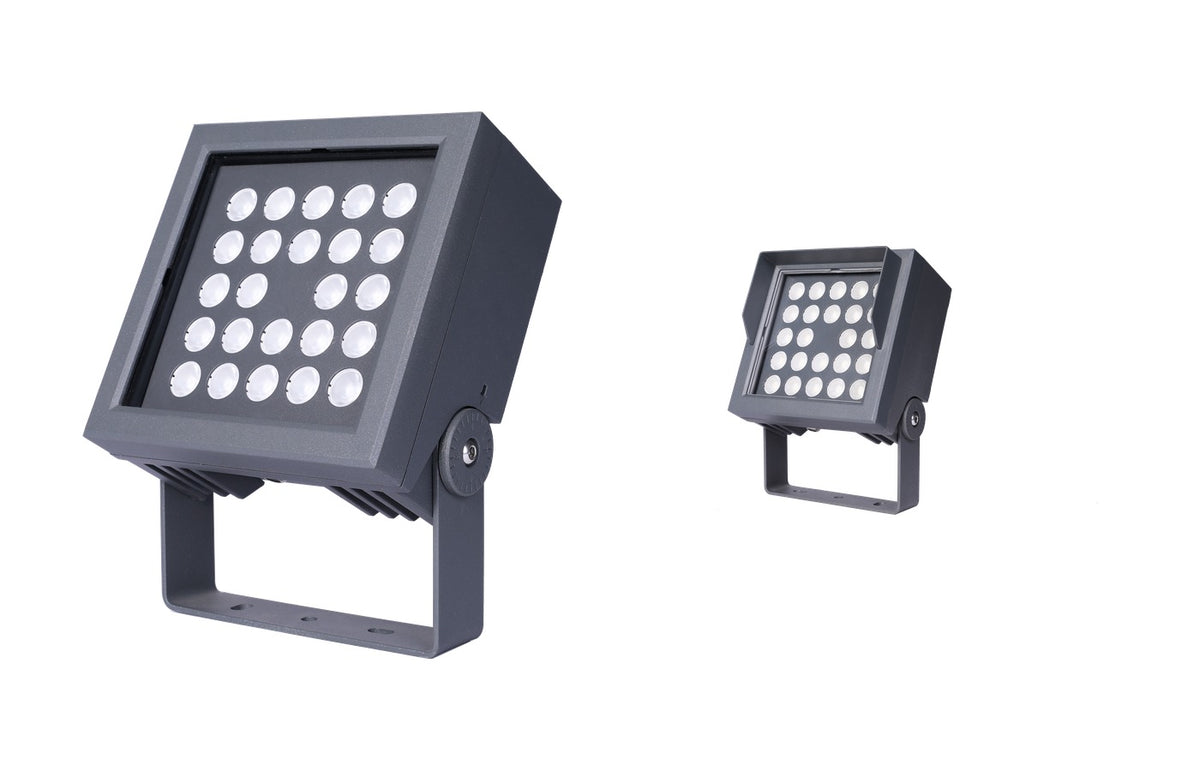

TG14
Architectural Flood Light

TG14

Voltage24V
Rated power48.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions160 × 82 × 218 mm

TG14 architectural flood-light reference platform with 24V DC input, 48W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

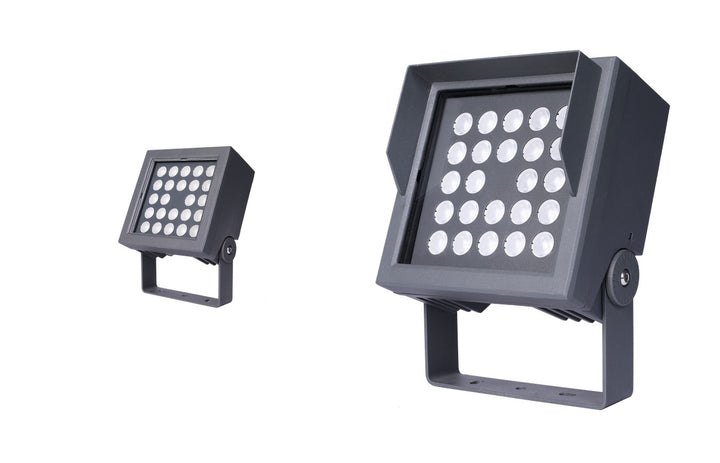

TG15
Architectural Flood Light

TG15

Voltage24V
Rated power60.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions185 × 90 × 247 mm

TG15 architectural flood-light reference platform with 24V DC input, 60W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

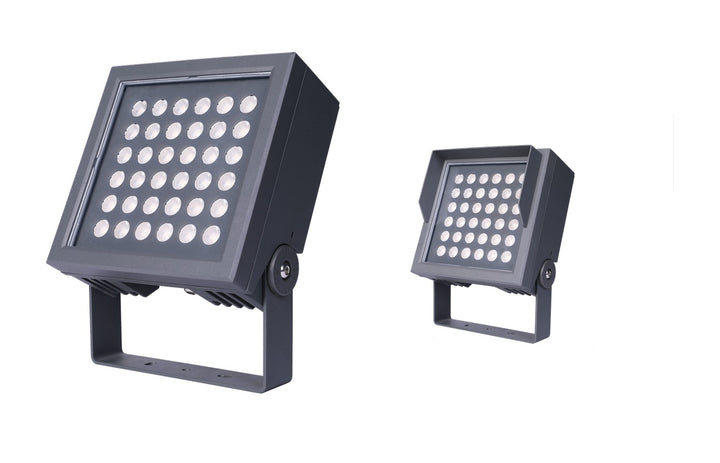

TG16
Architectural Flood Light

TG16

Voltage220V
Rated power72.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions220 × 95 × 291 mm

TG16 architectural flood-light reference platform with AC220V input, 72W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

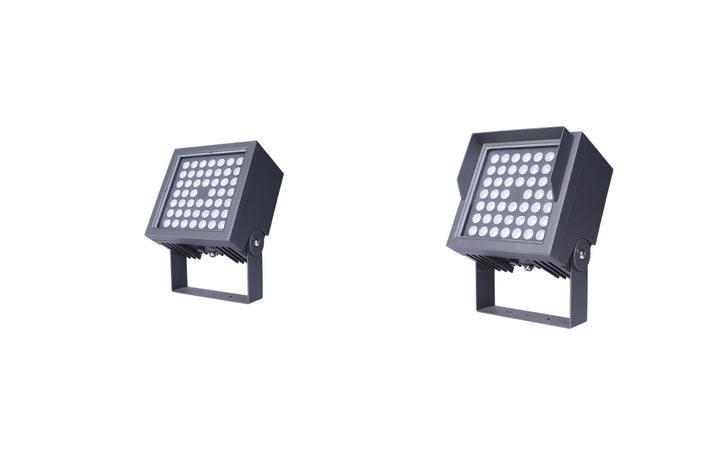

TG17
Architectural Flood Light

TG17

Voltage220V
Rated power120.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions220 × 120 × 290 mm

TG17 architectural flood-light reference platform with AC220V input, 120W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

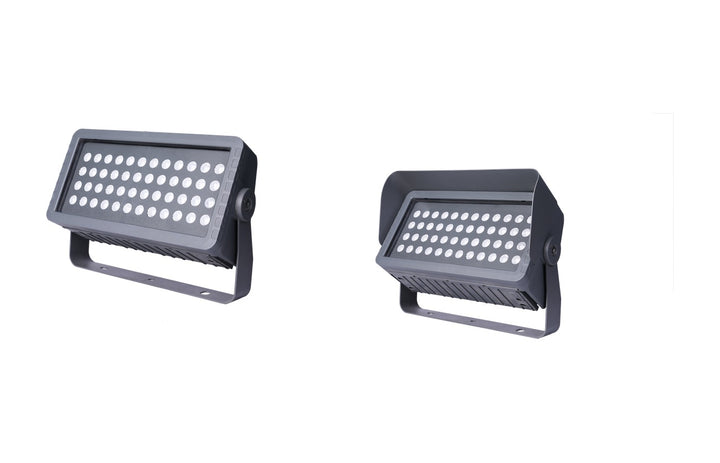

TG18
Architectural Flood Light

TG18

Voltage220V
Rated power150.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions380 × 124 × 280 mm

TG18 architectural flood-light reference platform with AC220V input, 150W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

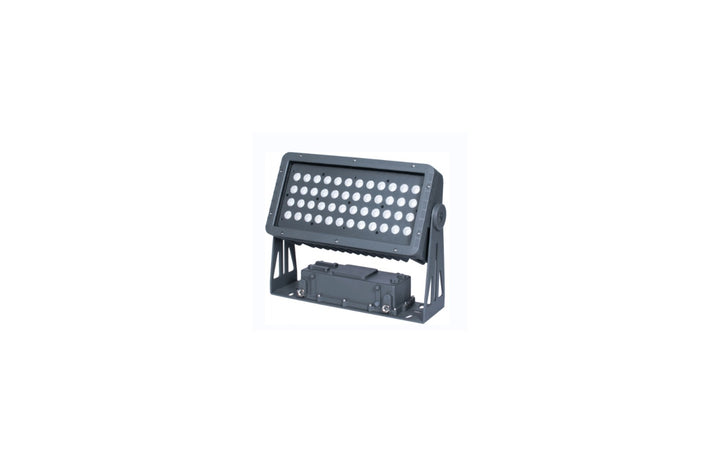

TG19
Architectural Flood Light

TG19

Voltage220V
Rated power200.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions404 × 321 × 123 mm

TG19 architectural flood-light reference platform with AC220V input, 200W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

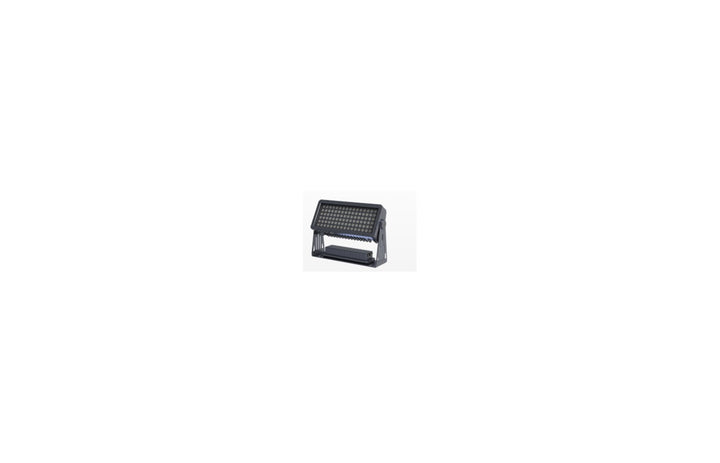

TG20
Architectural Flood Light

TG20

Voltage220V
Rated power240.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions490 × 352 × 129 mm

TG20 architectural flood-light reference platform with AC220V input, 240W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

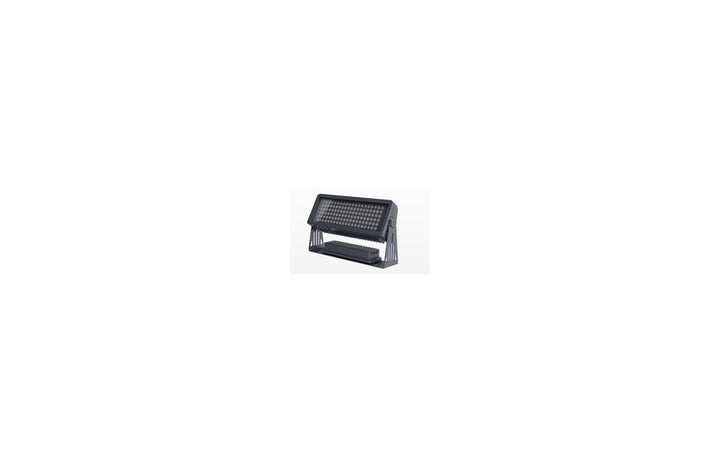

TG21
Architectural Flood Light

TG21

Voltage220V
Rated power360.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions643 × 248 × 215 mm

TG21 architectural flood-light reference platform with AC220V input, 360W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

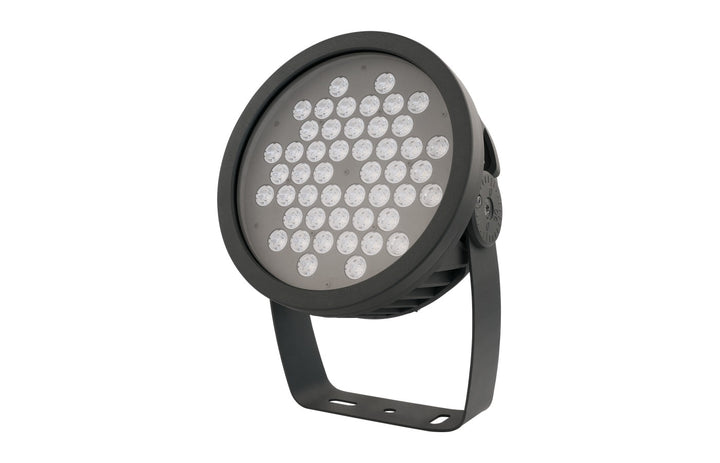

TG26
Architectural Flood Light

TG26

Voltage220V
Rated power150.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ265 × 140 × 365 mm

TG26 architectural flood-light reference platform with AC220V input, 150W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

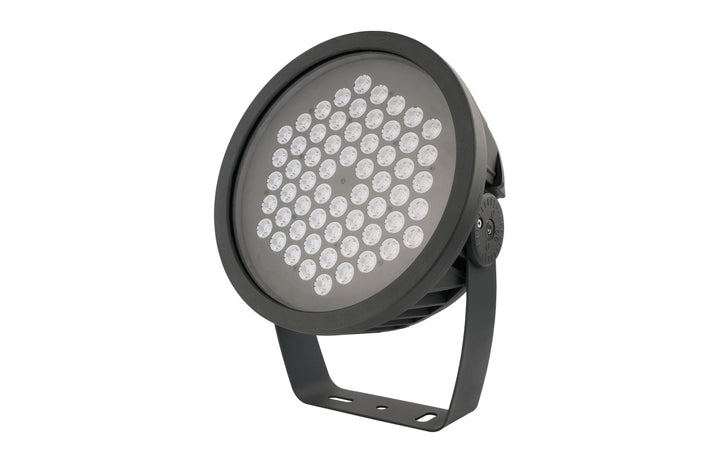

TG27
Architectural Flood Light

TG27

Voltage220V
Rated power200.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ300 × 145 × 381 mm

TG27 architectural flood-light reference platform with AC220V input, 200W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

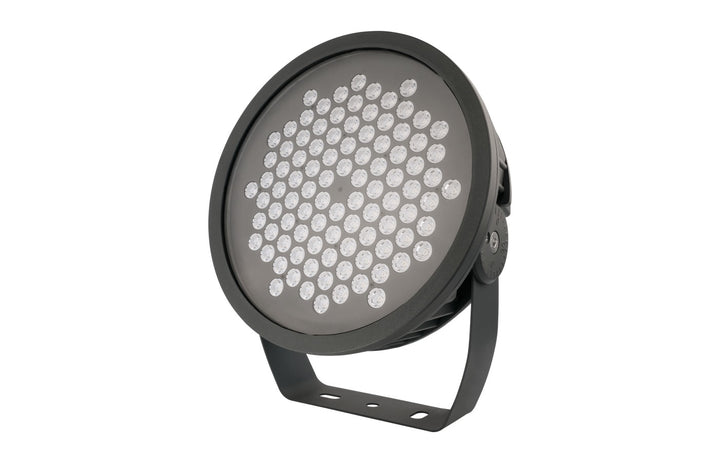

TG28
Architectural Flood Light

TG28

Voltage220V
Rated power240.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ370 × 166 × 466 mm

TG28 architectural flood-light reference platform with AC220V input, 240W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →

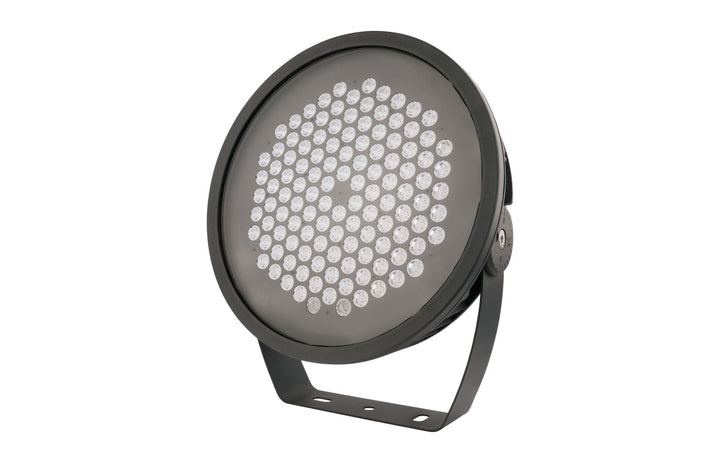

TG29
Architectural Flood Light

TG29

Voltage220V
Rated power300.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
DimensionsØ420 × 170 × 500 mm

TG29 architectural flood-light reference platform with AC220V input, 300W RGBW output, DMX512 control, multiple optical options and IP65 protection.

View model →
