Architectural Flood Light

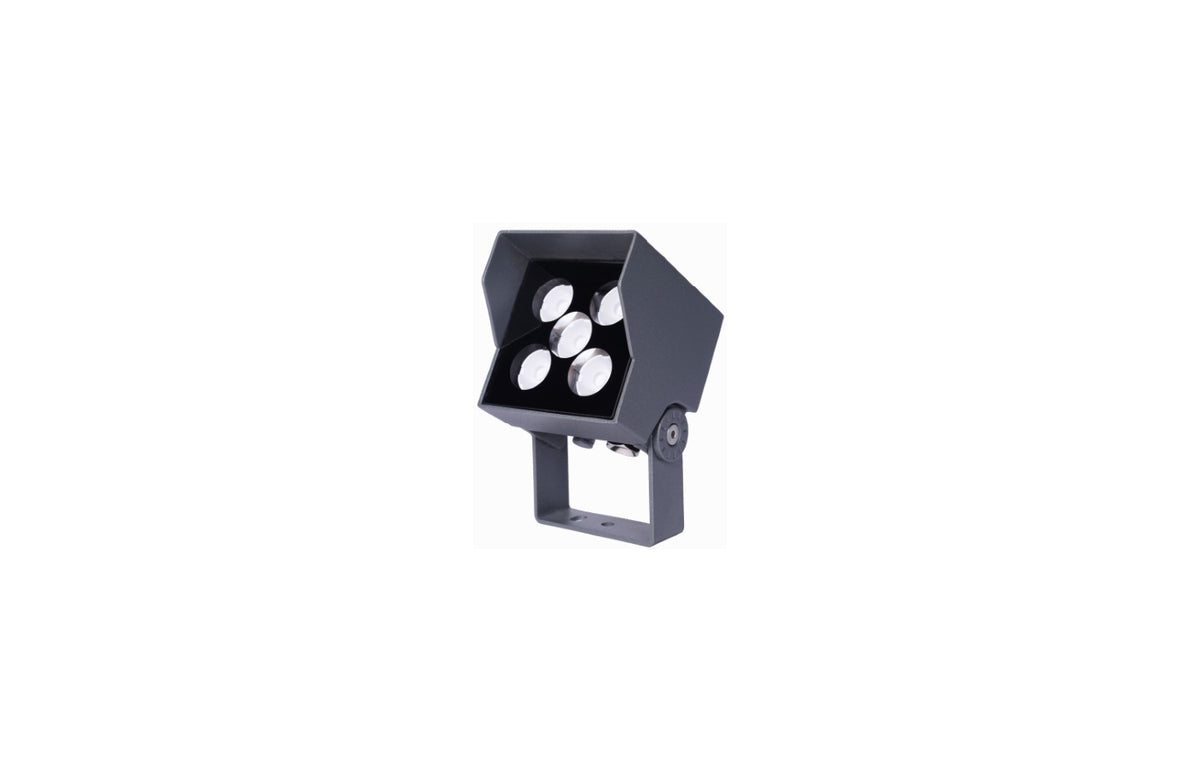

TG11
TG11 architectural flood-light reference platform with 24V DC input, 15W RGBW output, DMX512 control, multiple optical options and IP65 protection.
Model data
Technical specifications
Product familyArchitectural Lighting
SeriesTG
Voltage24V
Rated power15.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions80 × 80 × 85 mm
Beam angle20° / 30° / 45° / 60° / 20×55°
Reference SKUW80

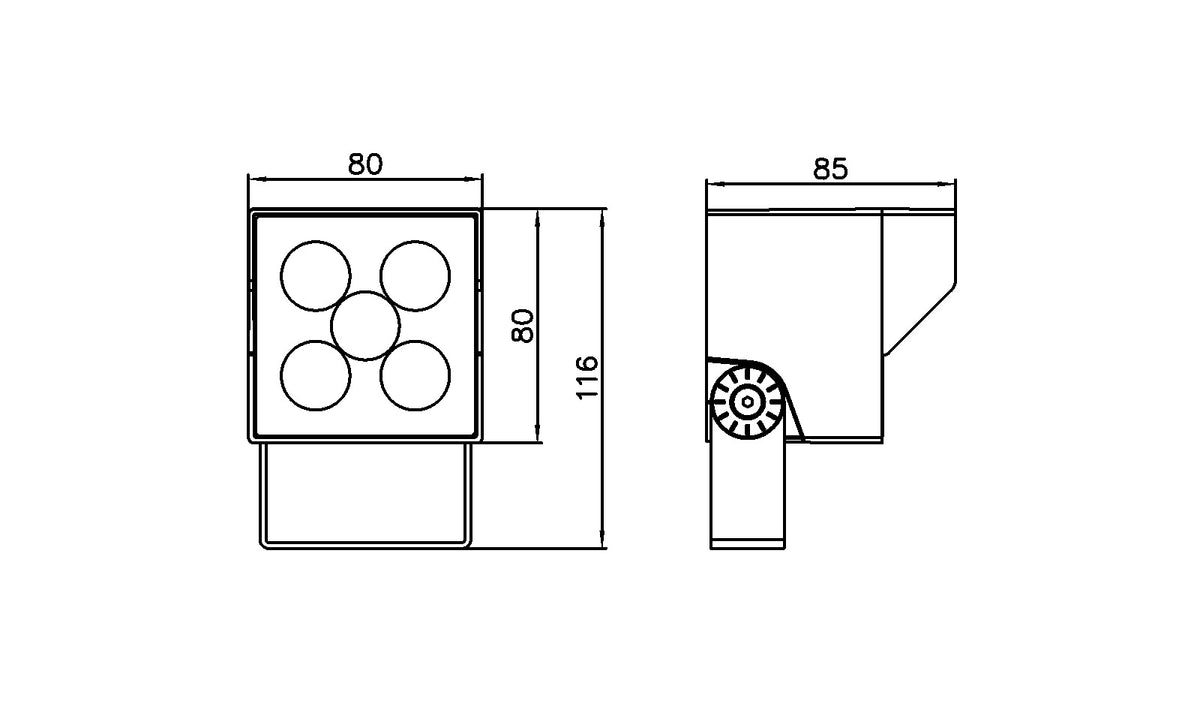

Mechanical reference
Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Light output | Voltage | Rated power | Control |
|---|---|---|---|
| RGBW | 24V DC | 15W | DMX512 |
Engineering reference
Technical information & downloads
LED / light source
Osram 3535 RGBW 4-in-1 × 5
Cable / connector
Five-pin waterproof male/female project cable, typically 2×0.75 mm² + 3×0.3 mm²
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
