Wall Washers

Use current model data to compare product type, voltage, power, control mode, light output, optics and media parameters.

Product architecture

5 models

Architectural wall-washer family for facade grazing, wall washing, columns and exterior accents.

Current models: XQ04, XQ05, XQ06, XT14 and XT15.

Use the model cards below to compare length, power, light output, control and optical options. Open each model for its full technical page.

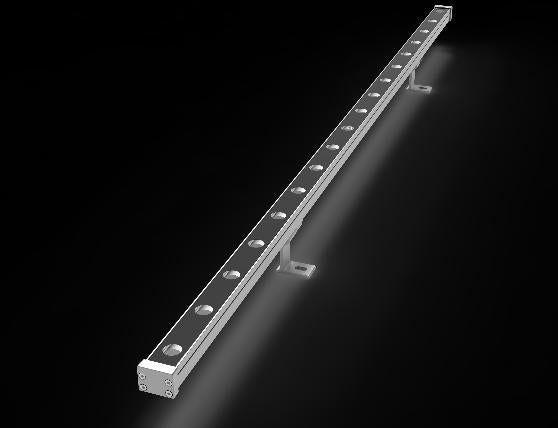

SHLED wall washer product reference
Reference product

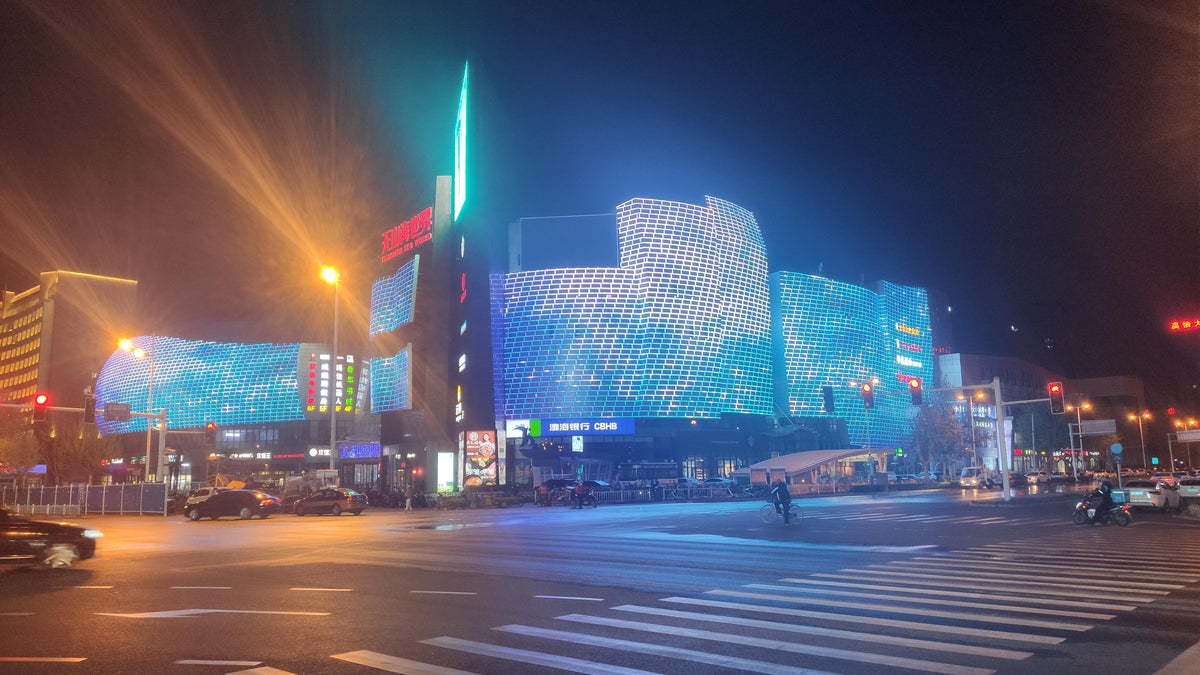

SHLED commercial complex lighting application
Application reference

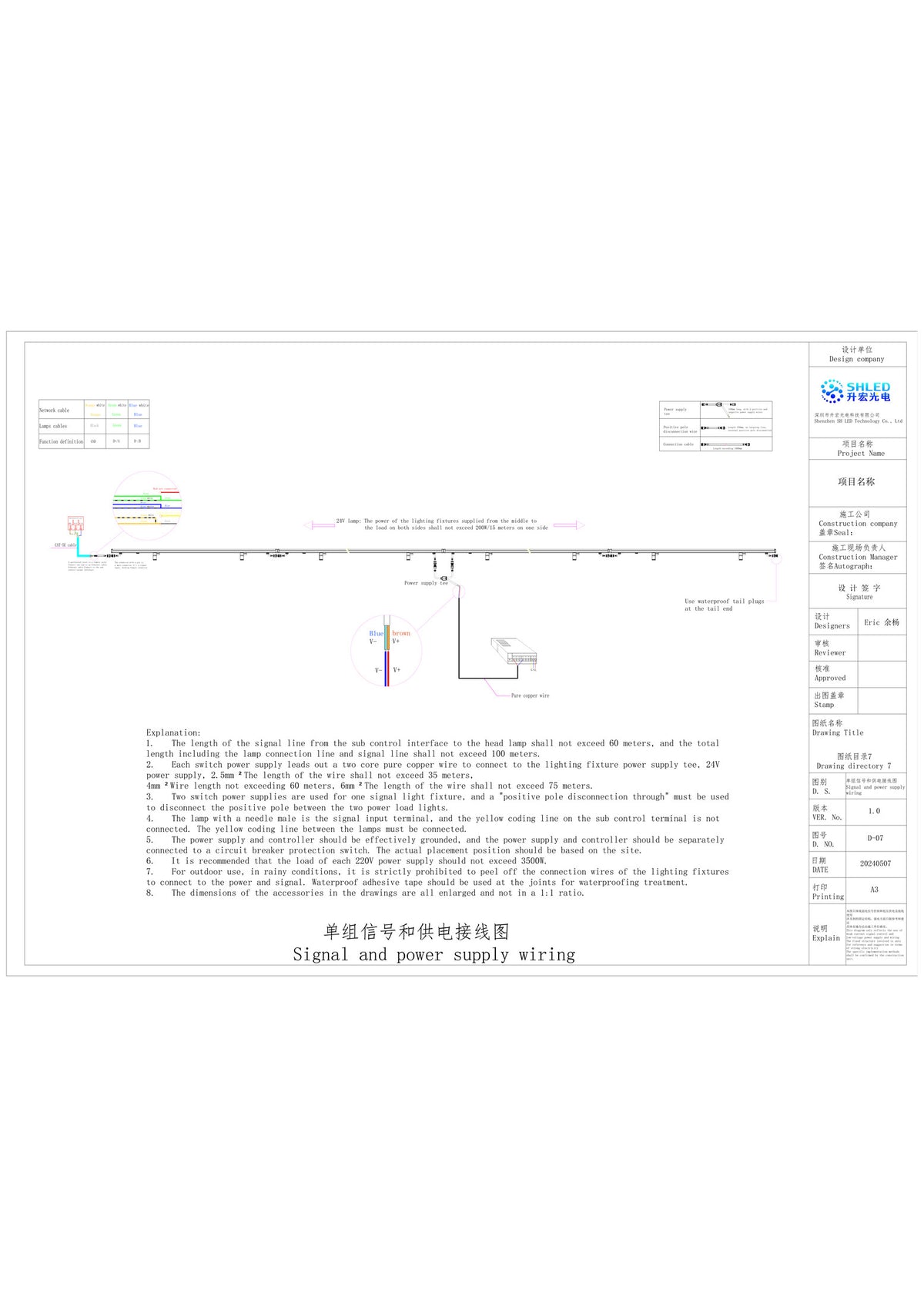

SHLED DMX wall washer wiring reference
Engineering reference

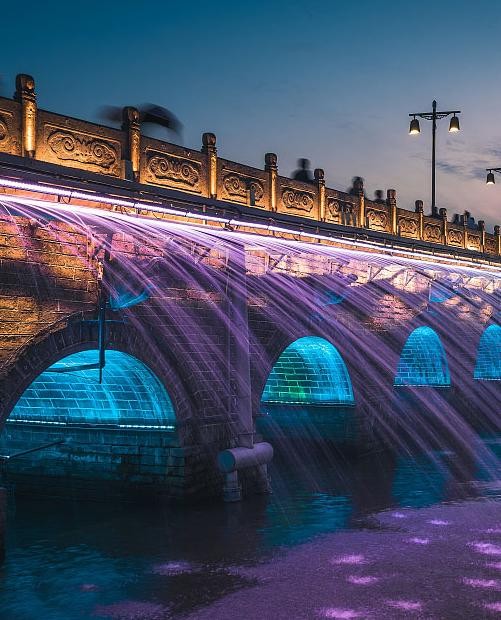

SHLED wall washer lighting effect reference
Light effect reference

Applications

Facade grazingWall washingColumnsArchitectural accents

Engineering focus

Optical selectionGlare controlThermal performanceMounting distanceOutdoor sealing
← Products & Systems

Each model opens its own technical page. Final tender and project specifications follow the latest approved technical submittal.

Send Your Project →

Model directory

Compare models within this product family.

Filter and compare models by electrical, optical, mechanical and media parameters, then open a model for detailed engineering information.

5models

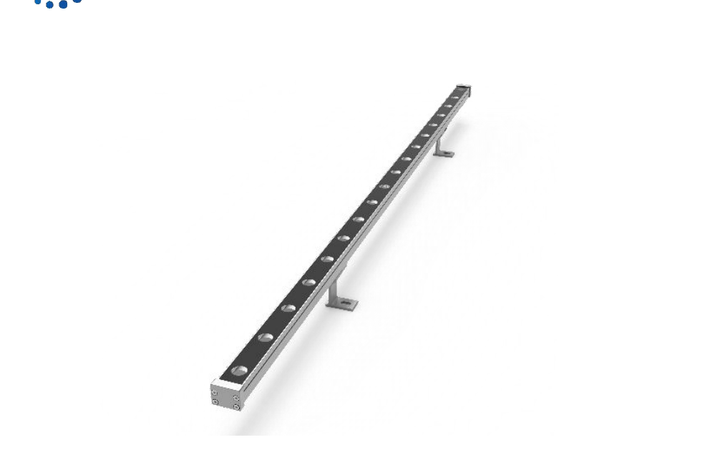

XQ04
Architectural Wall Washer

XQ04

Length300 / 500 / 1000 mm
Voltage24V
Rated power6.0 / 9.0 / 18.0W
ControlDMX512 / ON/OFF
Light outputRGBW / White
IP ratingIP65
Dimensions300 / 500 / 1000 mm; 28.7 mm wide profile; optional glare shield

Compact 24V wall-washer platform with 300, 500 and 1000 mm lengths, multiple narrow/wide optics and optional glare-control accessories.

View model →

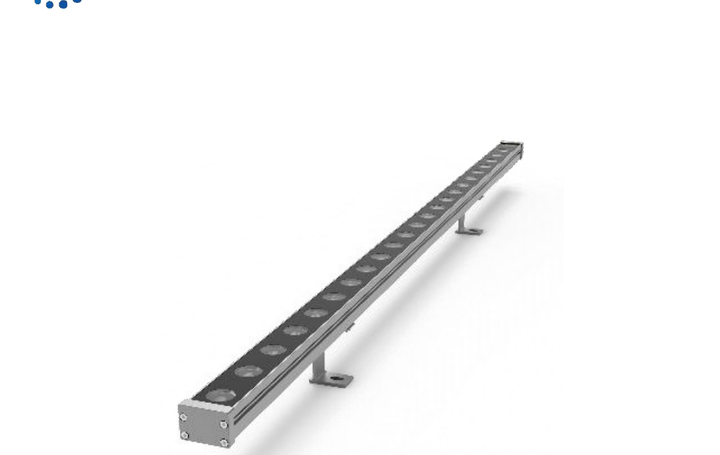

XQ05
Architectural Wall Washer

XQ05

Length300 / 500 / 1000 mm
Voltage24V
Rated power6.0 / 8.0 / 12.0 / 24.0W
ControlDMX512 / ON/OFF
Light outputRGBW / White
IP ratingIP65
Dimensions300 / 500 / 1000 mm; 37.4 mm wide profile; optional glare shield

Medium-output wall-washer platform for architectural facade washing with modular lengths, RGBW or white light, and glare-control options.

View model →

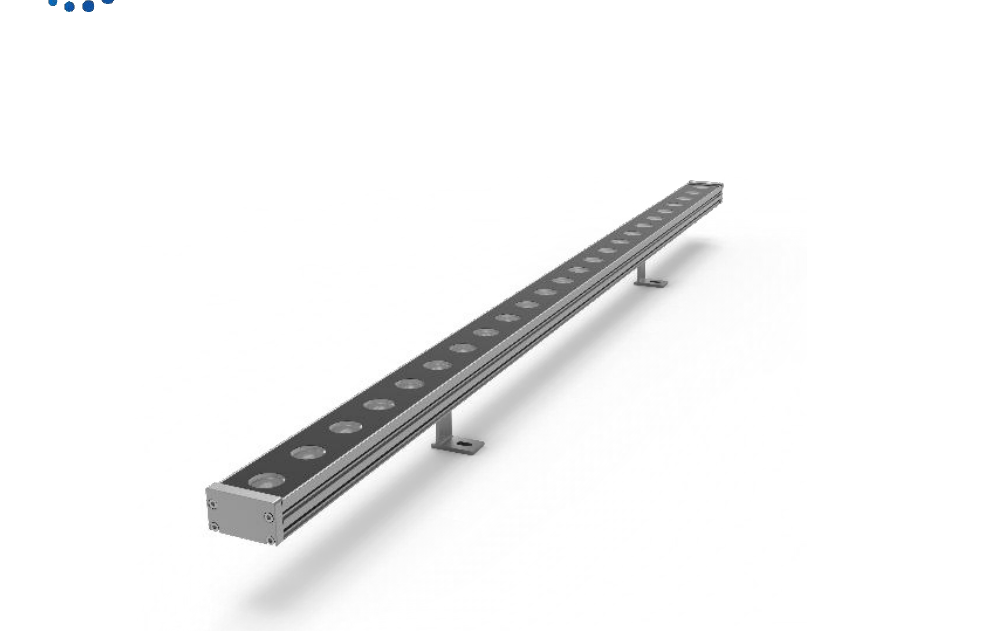

XQ06
Architectural Wall Washer

XQ06

Length300 / 500 / 1000 mm
Voltage24V
Rated power12.0 / 18.0 / 24.0 / 36.0 / 48.0W
ControlDMX512 / ON/OFF
Light outputRGBW / White
IP ratingIP65
Dimensions300 / 500 / 1000 mm; 44.3 mm wide profile; optional glare shield

Higher-output 24V architectural wall washer with multiple power levels, optics and glare-control options for larger facade surfaces.

View model →

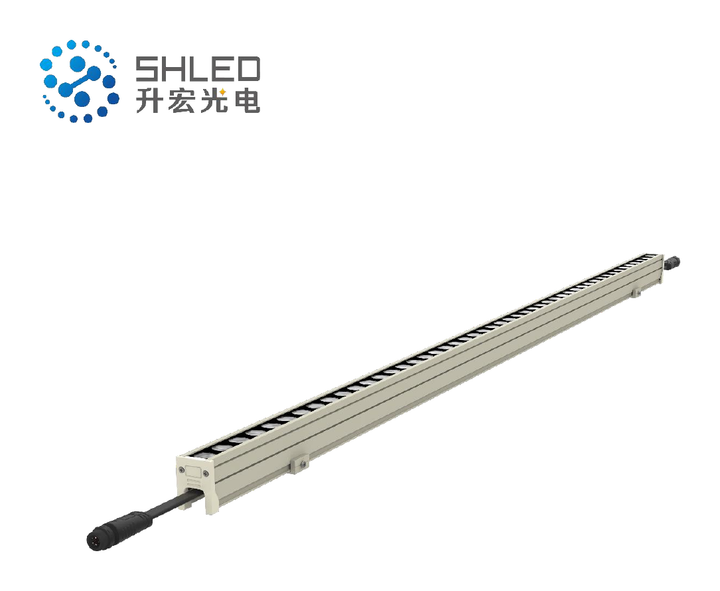

XT14
Architectural Wall Washer

XT14

Length300 / 500 / 1000 mm
Voltage24V
Rated power5.5 / 6.0 / 7.5 / 12.0 / 15.0W
ControlDMX512 / ON/OFF
Light outputRGB / RGBW / White
IP ratingIP65
Dimensions300 / 500 / 1000 mm; 26.8 × 36 mm profile

Slim wall-wash linear platform with multiple mounting brackets and narrow/elliptical optics for close-to-facade integration.

View model →

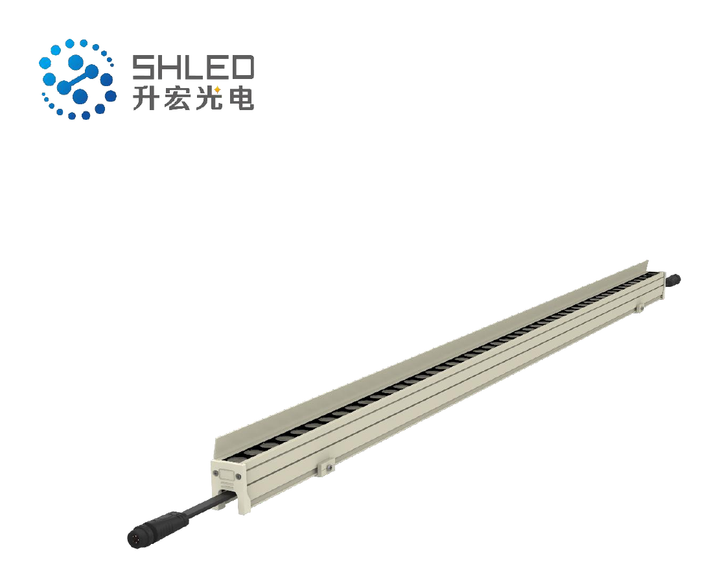

XT15
Architectural Wall Washer

XT15

Length300 / 500 / 1000 mm
Voltage24V
Rated power5.5 / 6.0 / 7.5 / 12.0 / 15.0W
ControlDMX512 / ON/OFF
Light outputRGB / RGBW / White
IP ratingIP65
Dimensions300 / 500 / 1000 mm; 26.8 × 51 mm profile

Deeper-profile wall washer with concealed cable routing, multiple bracket options and RGB/RGBW/white configurations.

View model →

Side-by-side selection

Model comparison
