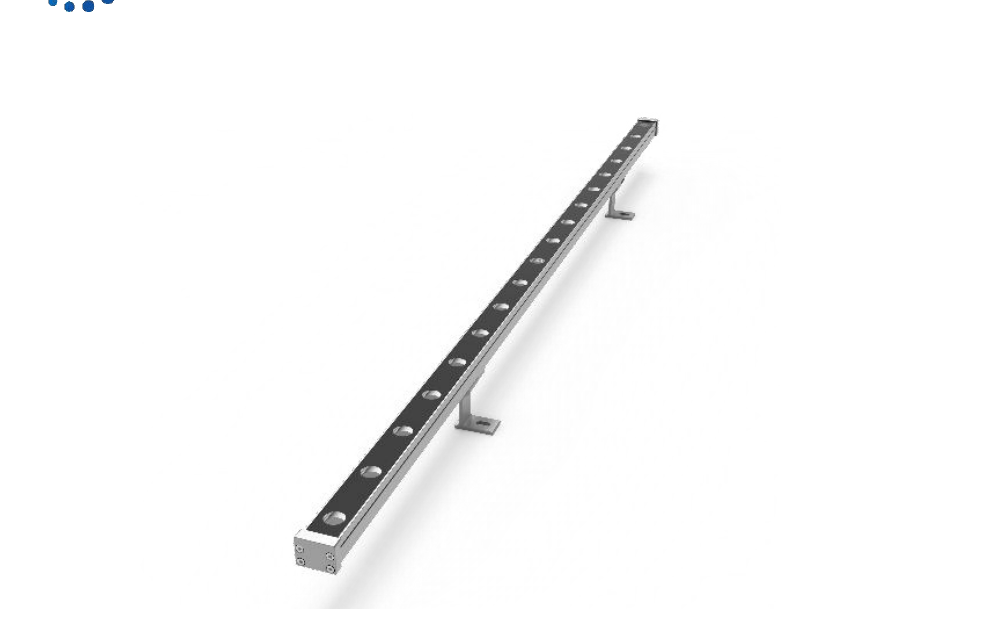

Architectural Wall Washer
XQ04
Compact 24V wall-washer platform with 300, 500 and 1000 mm lengths, multiple narrow/wide optics and optional glare-control accessories.
Model data
Technical specifications
Product familyArchitectural Lighting
SeriesXQ
Length300 / 500 / 1000 mm
Voltage24V
Rated power6.0 / 9.0 / 18.0W
ControlDMX512 / ON/OFF
Light outputRGBW / White
CCT4000K
IP ratingIP65
Dimensions300 / 500 / 1000 mm; 28.7 mm wide profile; optional glare shield
Beam angle12° / 20° / 30° / 45° / 60° / 15×30° / 20×60°
Mechanical reference

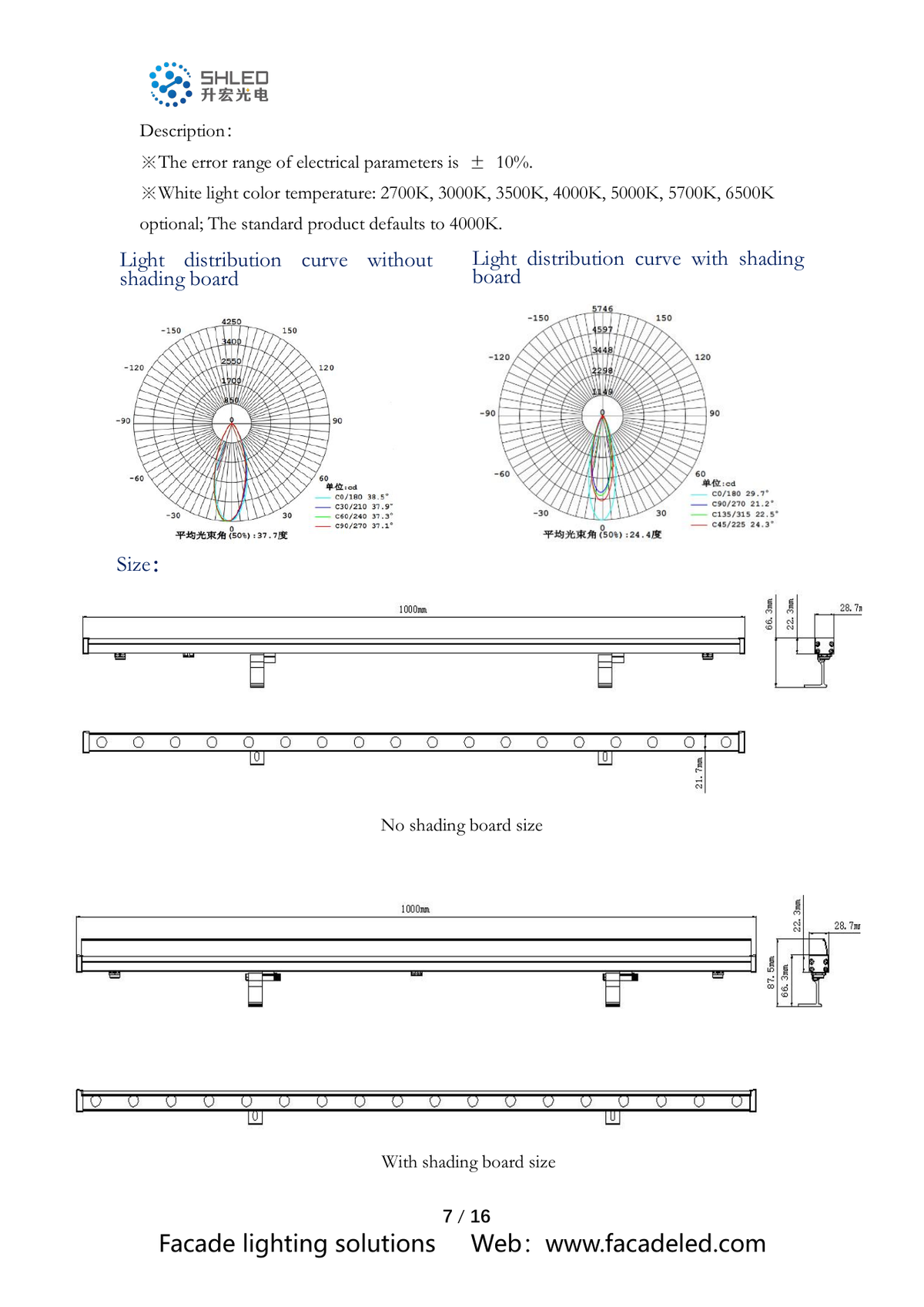

Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Length | Light output | Voltage | Rated power | Control | Pixel segments |
|---|---|---|---|---|---|
| 1000 mm | RGBW | 24V DC | 18W | DMX512 | 3 |
| 1000 mm | White | 24V DC | 18W | DMX512 | 1 |
| 1000 mm | White | 24V DC | 18W | ON/OFF | — |
| 500 mm | RGBW | 24V DC | 9W | DMX512 | 1 |
| 500 mm | White | 24V DC | 9W | DMX512 | 1 |
| 500 mm | White | 24V DC | 9W | ON/OFF | — |
| 300 mm | RGBW | 24V DC | 6W | DMX512 | 1 |
| 300 mm | White | 24V DC | 6W | DMX512 | 1 |
| 300 mm | White | 24V DC | 6W | ON/OFF | — |
Engineering reference
Technical information & downloads
LED / light source
3030 RGBW / 3030 White
Cable / connector
DMX: 2×1.0 mm² + 3×0.3 mm²; ON/OFF white: 2×1.0 mm²
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
