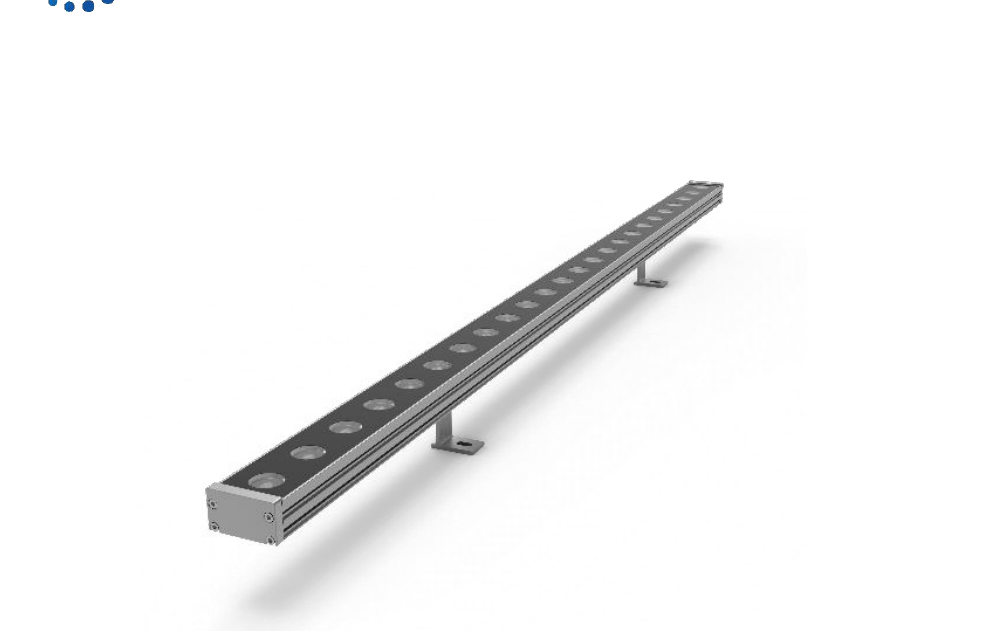

Architectural Wall Washer

XQ06

Higher-output 24V architectural wall washer with multiple power levels, optics and glare-control options for larger facade surfaces.

Send Your Project
XQ06

Model data

Technical specifications

Product familyArchitectural Lighting
SeriesXQ
Length300 / 500 / 1000 mm
Voltage24V
Rated power12.0 / 18.0 / 24.0 / 36.0 / 48.0W
ControlDMX512 / ON/OFF
Light outputRGBW / White
CCT4000K
IP ratingIP65
Dimensions300 / 500 / 1000 mm; 44.3 mm wide profile; optional glare shield
Beam angle12° / 15° / 20° / 30° / 45° / 60° / 15×30° / 20×60°

Mechanical reference

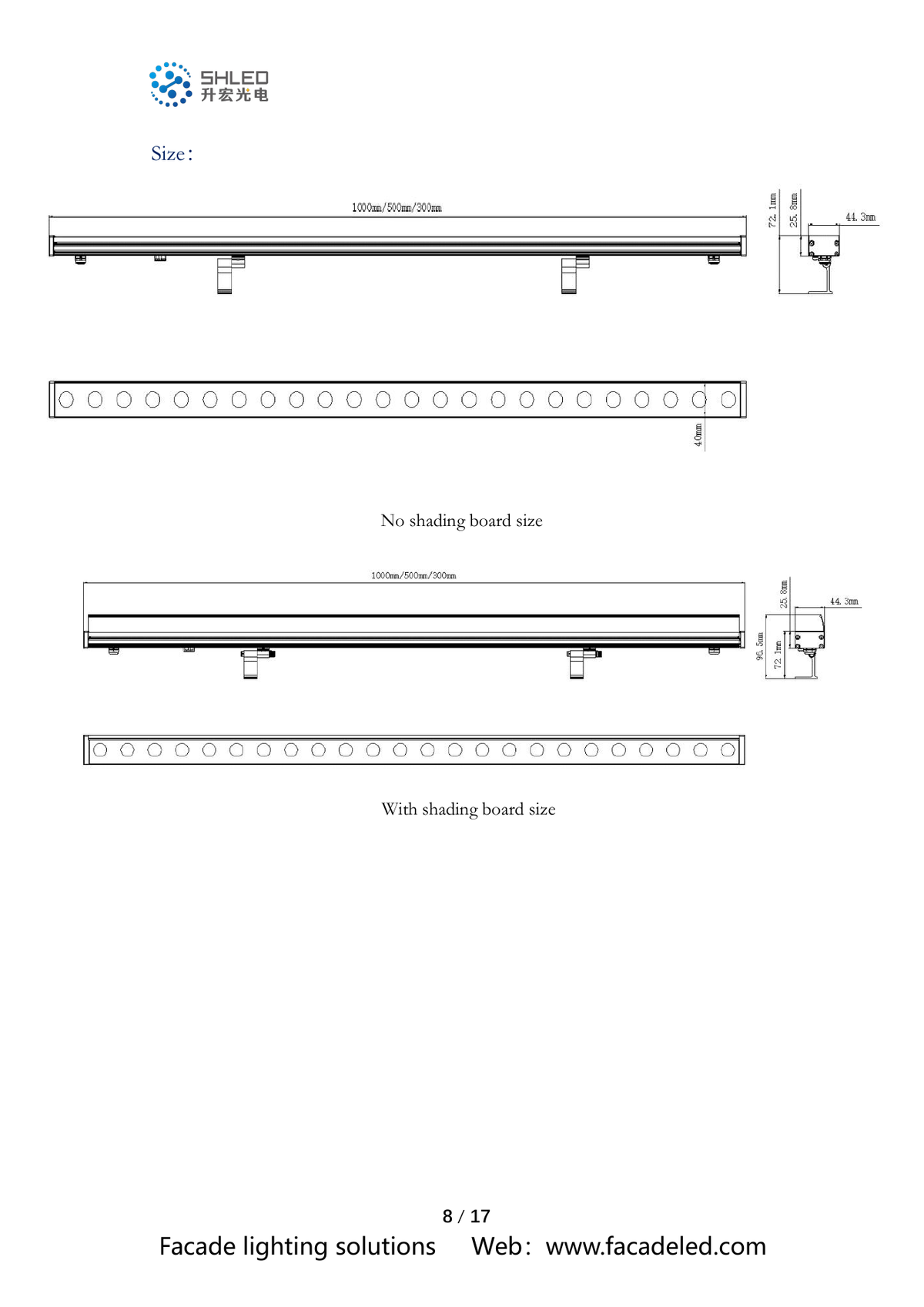

Dimension drawing & engineering notes

XQ06
XQ06 · Reference dimension drawing

Configuration matrix

Available model configurations

LengthLight outputVoltageRated powerControlPixel segments
1000 mmRGBW24V DC36WDMX5123
1000 mmRGBW24V DC48WDMX5123
1000 mmWhite24V DC36WDMX5121
1000 mmWhite24V DC48WDMX5121
1000 mmWhite24V DC36WON/OFF—
1000 mmWhite24V DC48WON/OFF—
500 mmRGBW24V DC18WDMX5121
500 mmRGBW24V DC24WDMX5122
500 mmWhite24V DC18WDMX5121
500 mmWhite24V DC24WDMX5121
500 mmWhite24V DC18WON/OFF—
500 mmWhite24V DC24WON/OFF—
300 mmRGBW24V DC12WDMX5121
300 mmWhite24V DC12WDMX5121
300 mmWhite24V DC12WON/OFF—

Engineering reference

Technical information & downloads

LED / light source

3030 RGBW / 3030 White

Cable / connector

DMX: 2×1.0 mm² + 3×0.3 mm²; ON/OFF white: 2×1.0 mm²

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
