Architectural Flood Light

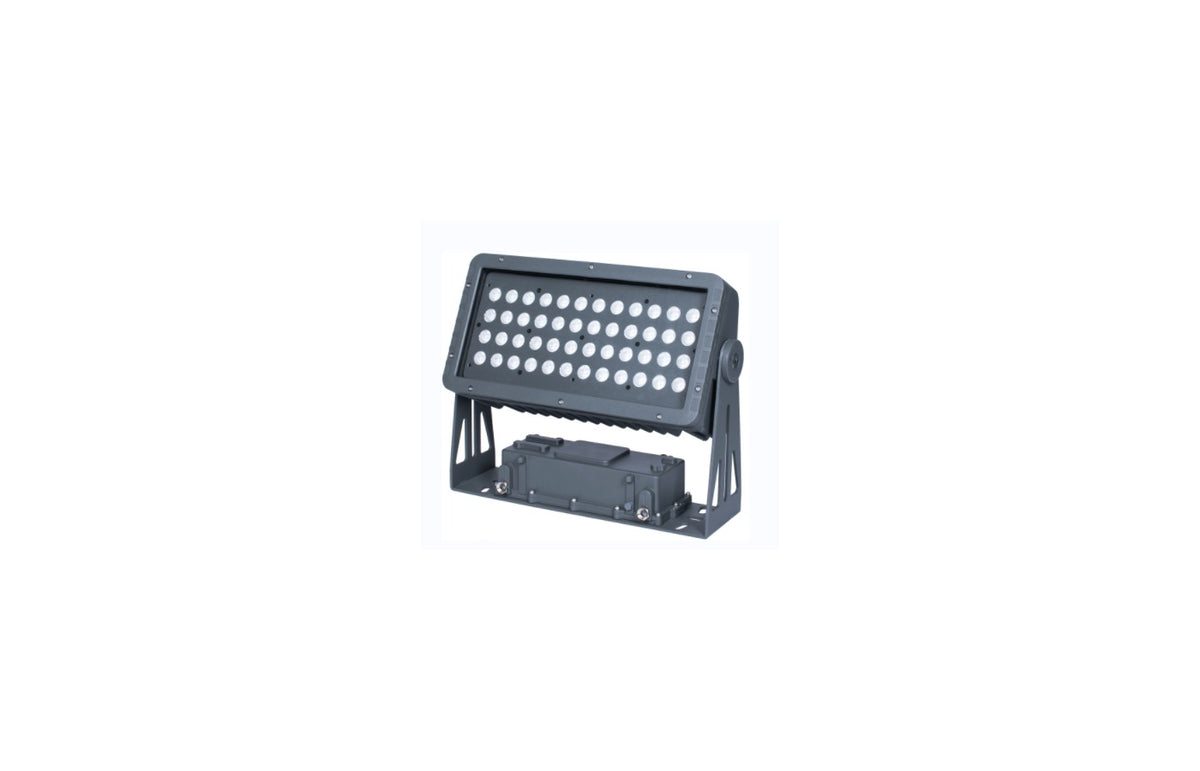

TG19
TG19 architectural flood-light reference platform with AC220V input, 200W RGBW output, DMX512 control, multiple optical options and IP65 protection.
Model data
Technical specifications
Product familyArchitectural Lighting
SeriesTG
Voltage220V
Rated power200.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions404 × 321 × 123 mm
Beam angle8–60° / 20×40° / 20×55°
Reference SKUW380P

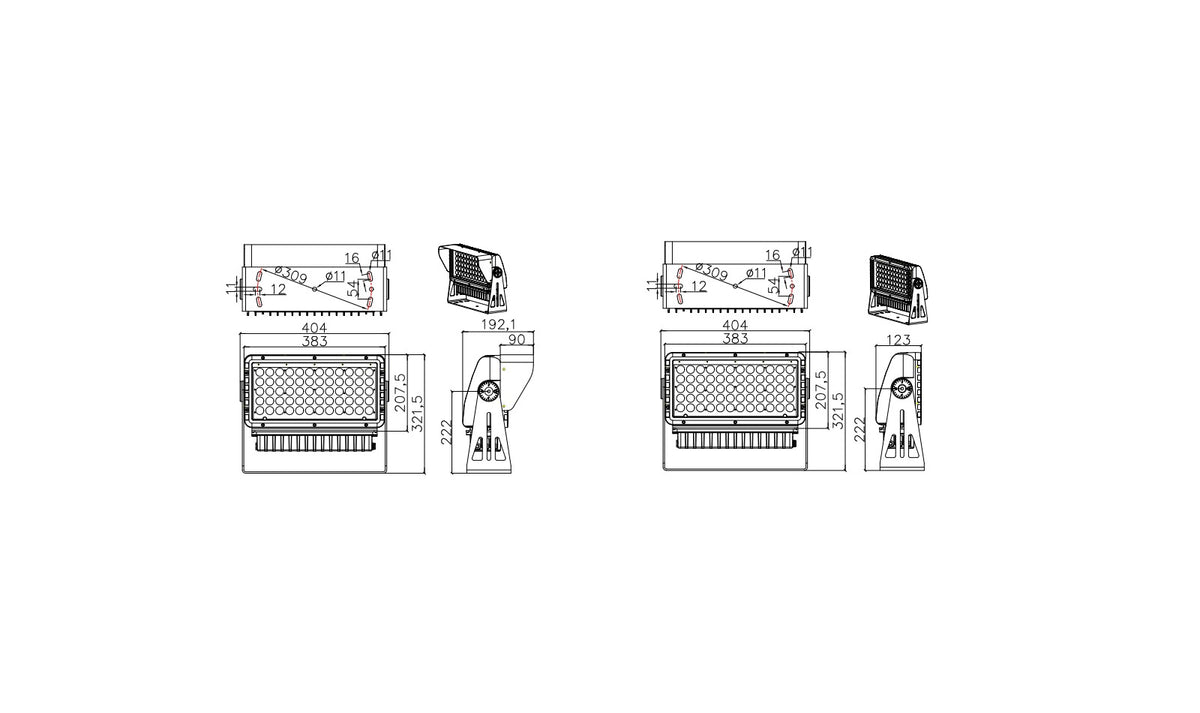

Mechanical reference
Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Light output | Voltage | Rated power | Control |
|---|---|---|---|
| RGBW | 220V AC | 200W | DMX512 |
Engineering reference
Technical information & downloads
LED / light source
3535 RGBW 4-in-1 × 60
Cable / connector
AC power cable plus separate signal cable / project connector configuration
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
