Architectural Flood Light

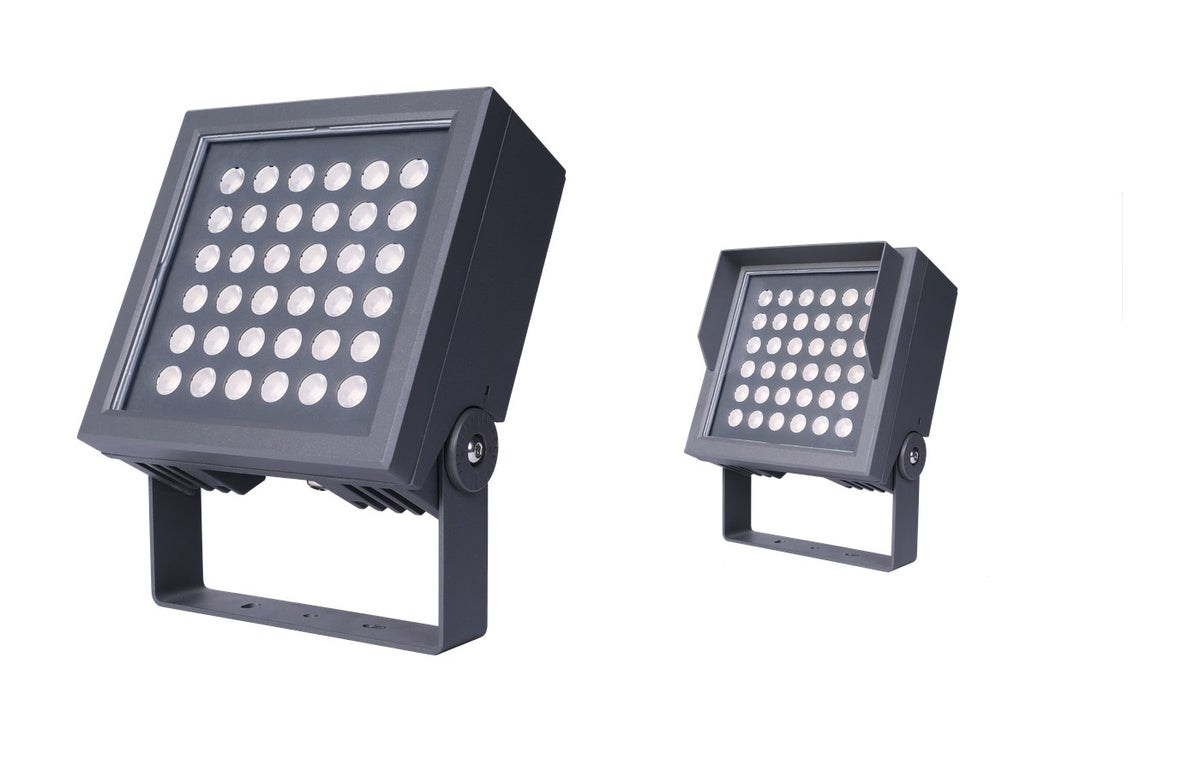

TG16

TG16 architectural flood-light reference platform with AC220V input, 72W RGBW output, DMX512 control, multiple optical options and IP65 protection.

Send Your Project
TG16

Model data

Technical specifications

Product familyArchitectural Lighting
SeriesTG
Voltage220V
Rated power72.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions220 × 95 × 291 mm
Beam angle20° / 30° / 45° / 60° / 20×55°
Reference SKUW220

Mechanical reference

Dimension drawing & engineering notes

TG16

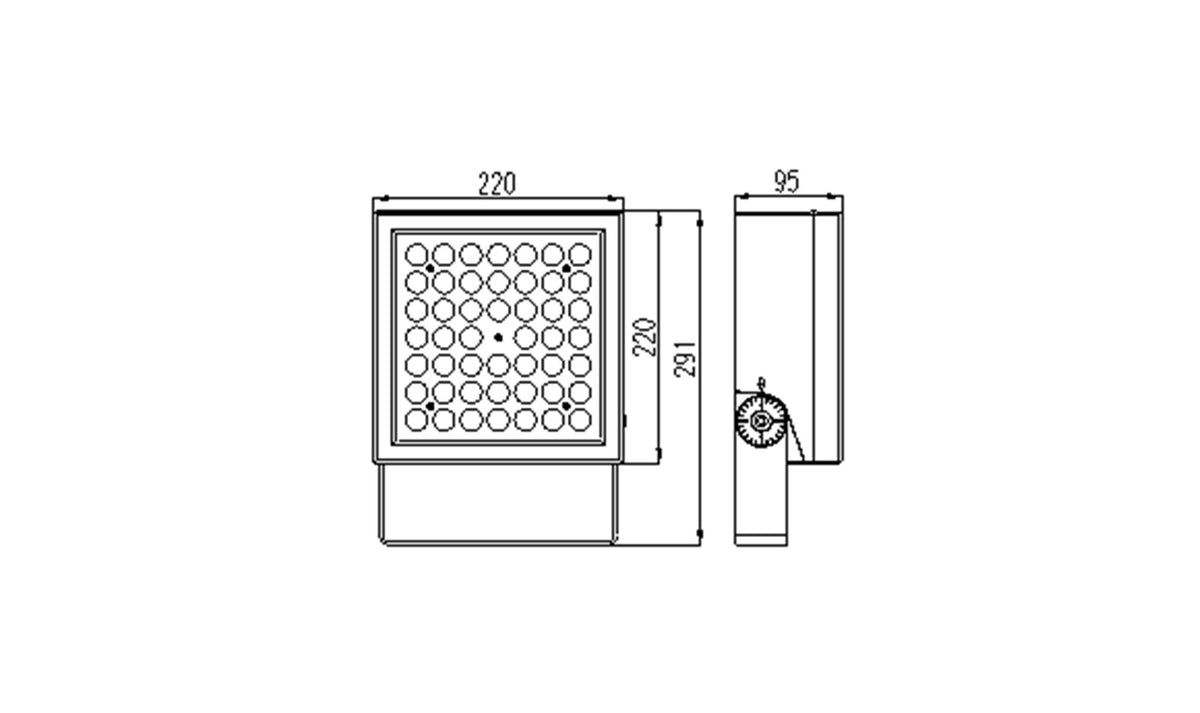

TG16 · Reference dimension drawing

Configuration matrix

Available model configurations

Light outputVoltageRated powerControl
RGBW220V AC72WDMX512

Engineering reference

Technical information & downloads

LED / light source

Osram 3535 RGBW 4-in-1 × 24

Cable / connector

AC power cable plus separate signal cable / project connector configuration

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
