Lightweight Night Media Mesh

Each model opens its own technical page. Final tender and project specifications follow the latest approved technical submittal.

Product architecture

2 models

Lightweight media-mesh family for transparent architectural media facades and large-area steel-wire installations.

Current models: E18 and E19.

Use the model cards below to compare voltage, power and pixel-pitch options. Open each model for its full technical page.

Applications

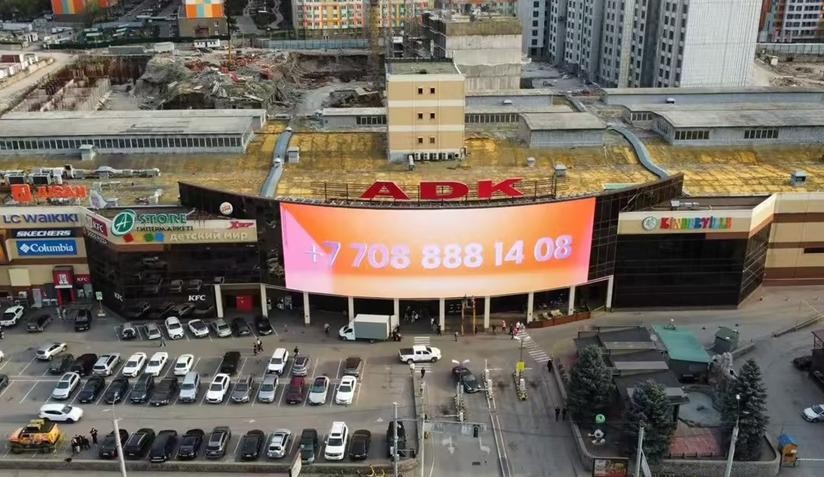

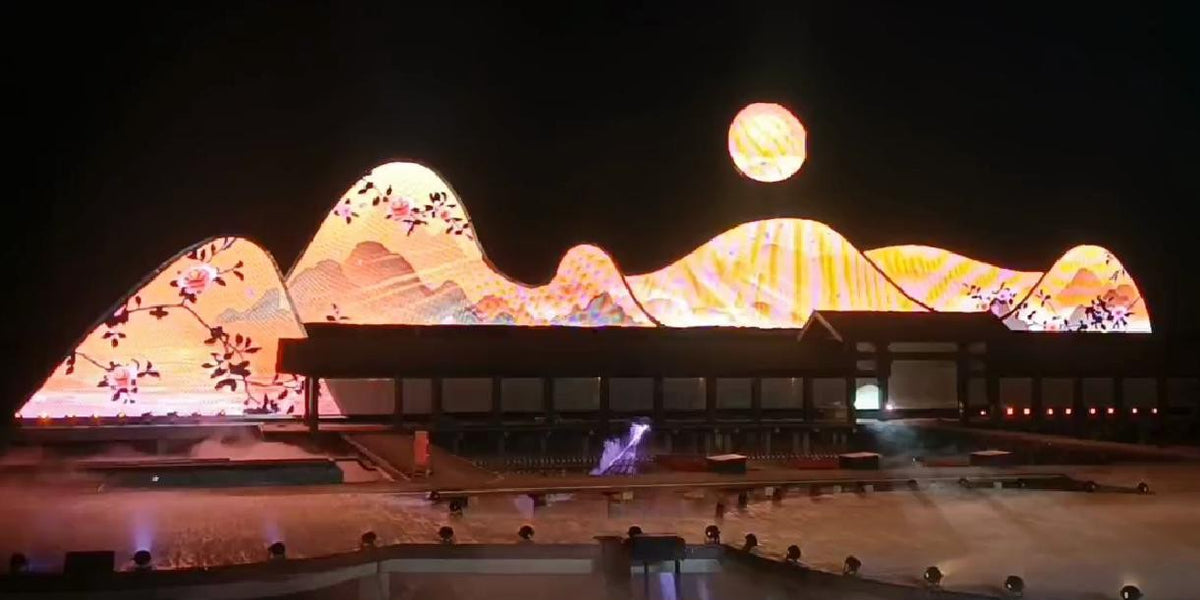

Transparent media facadesLarge lightweight facadesNight viewingSteel-wire mesh systems

Engineering focus

Pixel pitchTransparencyPower densitySignal continuityStructural loading

Model directory

Filter and compare models by electrical, optical, mechanical and media parameters, then open a model for detailed engineering information.

2models

Model Series Length Voltage Power Control Light output IP rating Pixel pitch

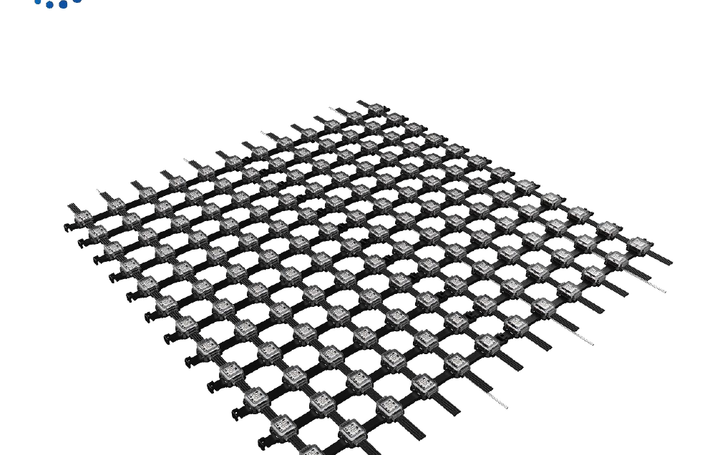

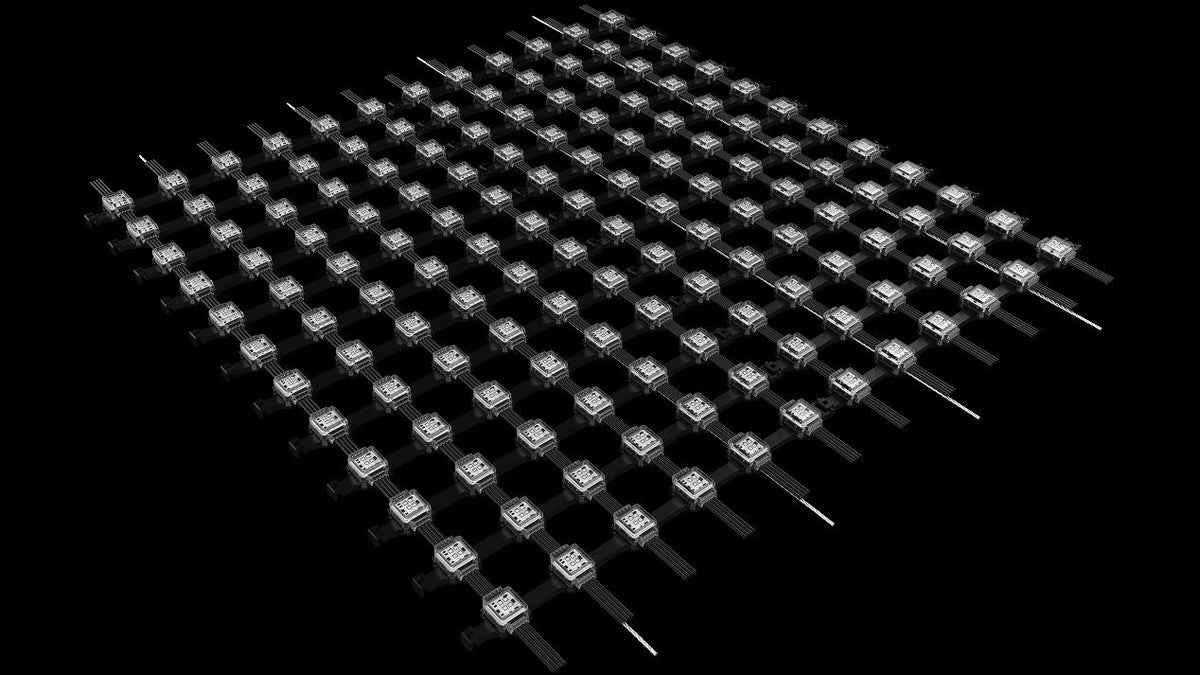

LED Media Mesh

Add to compare

Voltage12 / 24 / 36V

Rated power0.7 / 1.0 / 1.3W

ControlSPI

Light outputRGB

IP ratingIP67

Pixel pitchP31.25 / P40 / P50 / P55 / P62.5 / P80 / P100 / P125 / P150

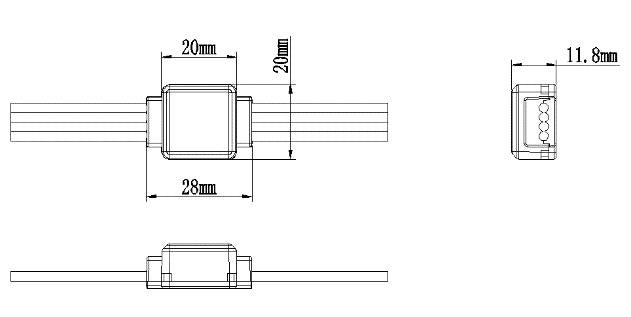

Dimensions28 × 20 × 11.8 mm

Lightweight steel-wire media-mesh point-light platform with conventional and high-brightness variants across multiple pixel pitches.

View model → Technical datasheet →

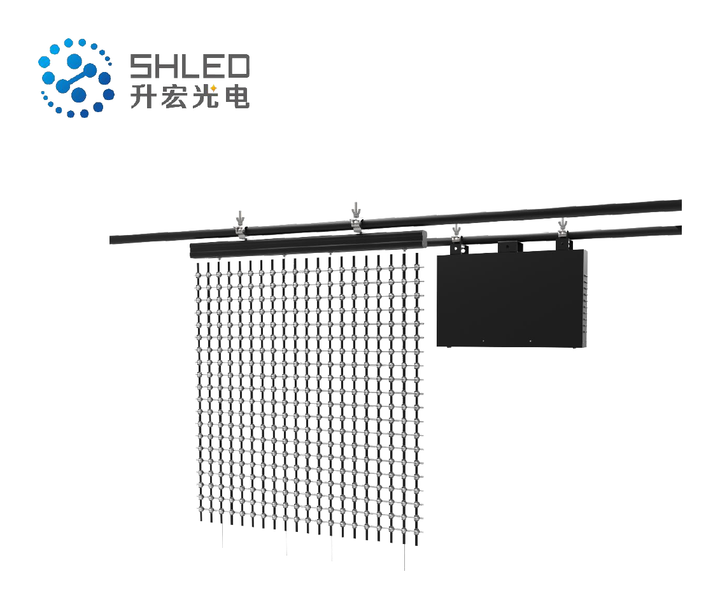

LED Media Mesh

Add to compare

Voltage36V

Rated power1.4W

ControlSPI

Light outputRGB

IP ratingIP67

Pixel pitchP50 / P62.5 / P75 / P100 / P125

Dimensions24 × 18 × 14.5 mm

Lightweight 36V SPI media-mesh platform designed for high transparency and steel-wire installation.

View model →
