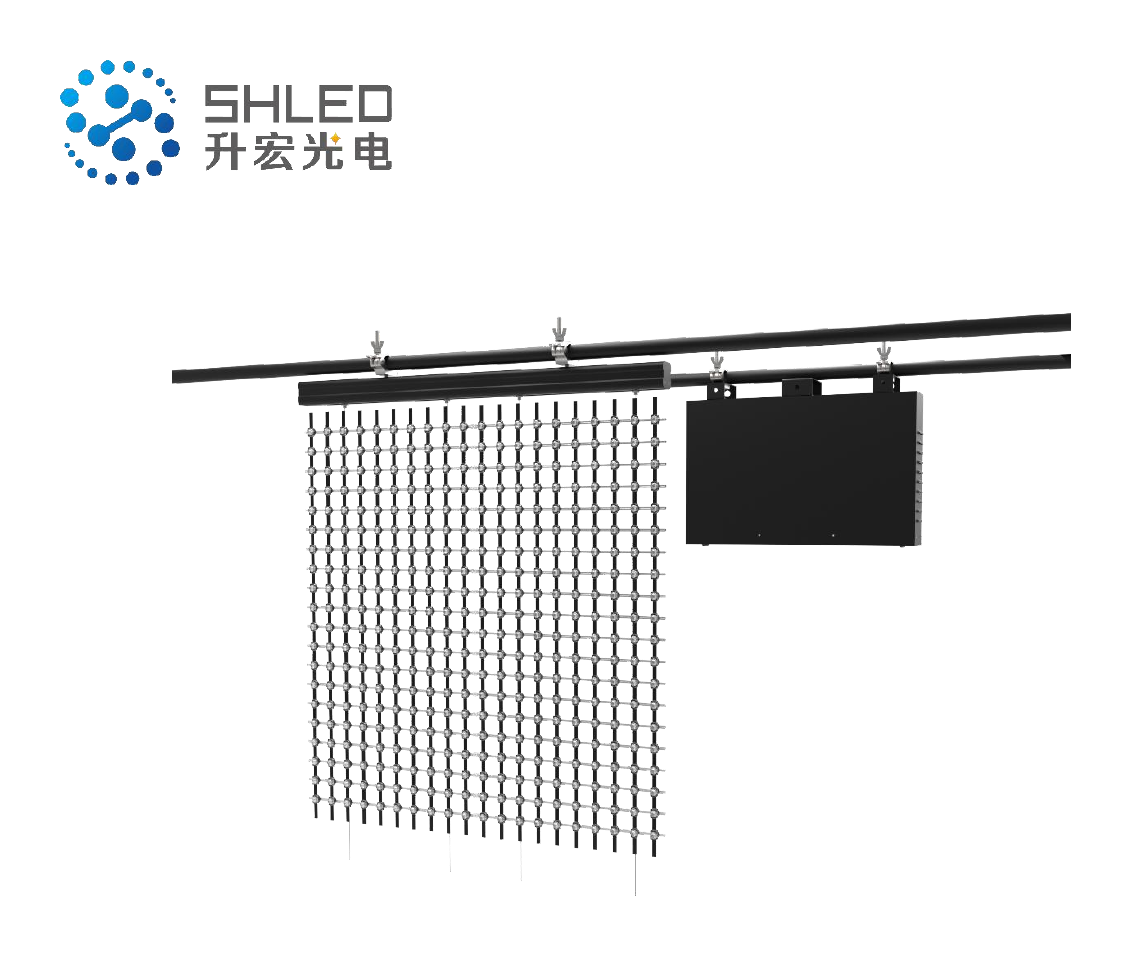

LED Media Mesh
E19
Lightweight 36V SPI media-mesh platform designed for high transparency and steel-wire installation.
Model data
Technical specifications
Product familyMedia Display
SeriesE
Voltage36V
Rated power1.4W
ControlSPI
Light outputRGB
IP ratingIP67
Pixel pitchP50 / P62.5 / P75 / P100 / P125
Dimensions24 × 18 × 14.5 mm
Beam angle110° / 120°

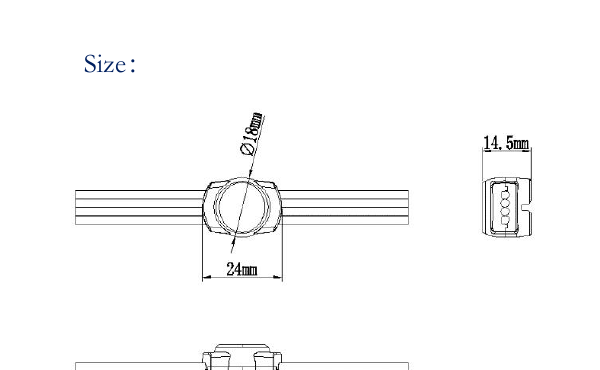

Mechanical reference
Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Light output | Voltage | Rated power | Control |
|---|---|---|---|
| RGB | 36V DC | 1.4W | SPI |
Engineering reference
Technical information & downloads
LED / light source
5054 RGB × 1
Cable / connector
Project cable configuration per media-mesh product manual
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
