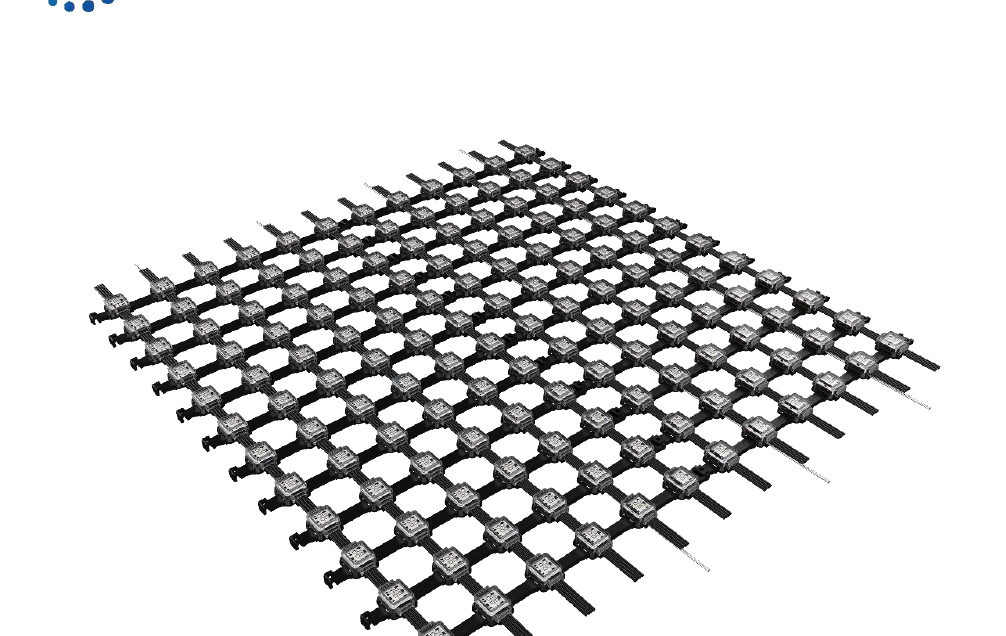

LED Media Mesh
E18
Lightweight steel-wire media-mesh point-light platform with conventional and high-brightness variants across multiple pixel pitches.
Model data
Technical specifications
Product familyMedia Display
SeriesE
Voltage12 / 24 / 36V
Rated power0.7 / 1.0 / 1.3W
ControlSPI
Light outputRGB
IP ratingIP67
Pixel pitchP31.25 / P40 / P50 / P55 / P62.5 / P80 / P100 / P125 / P150
Dimensions28 × 20 × 11.8 mm
Beam angle110° / 120°
Mechanical reference
Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Light output | Voltage | Rated power | Control |
|---|---|---|---|
| RGB | 12V DC | 0.7W | SPI |
| RGB | 24V DC | 1W | SPI |
| RGB | 24V DC | 1.3W | SPI |
| RGB | 36V DC | 1.3W | SPI |
Engineering reference
Technical information & downloads
LED / light source
3535RGB×2 / 2727RGB×4 / 2727RGB×6 / 5054RGB×1
Cable / connector
Project cable configuration per media-mesh product manual
Technical datasheet
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
