Architectural Flood Light
TG21

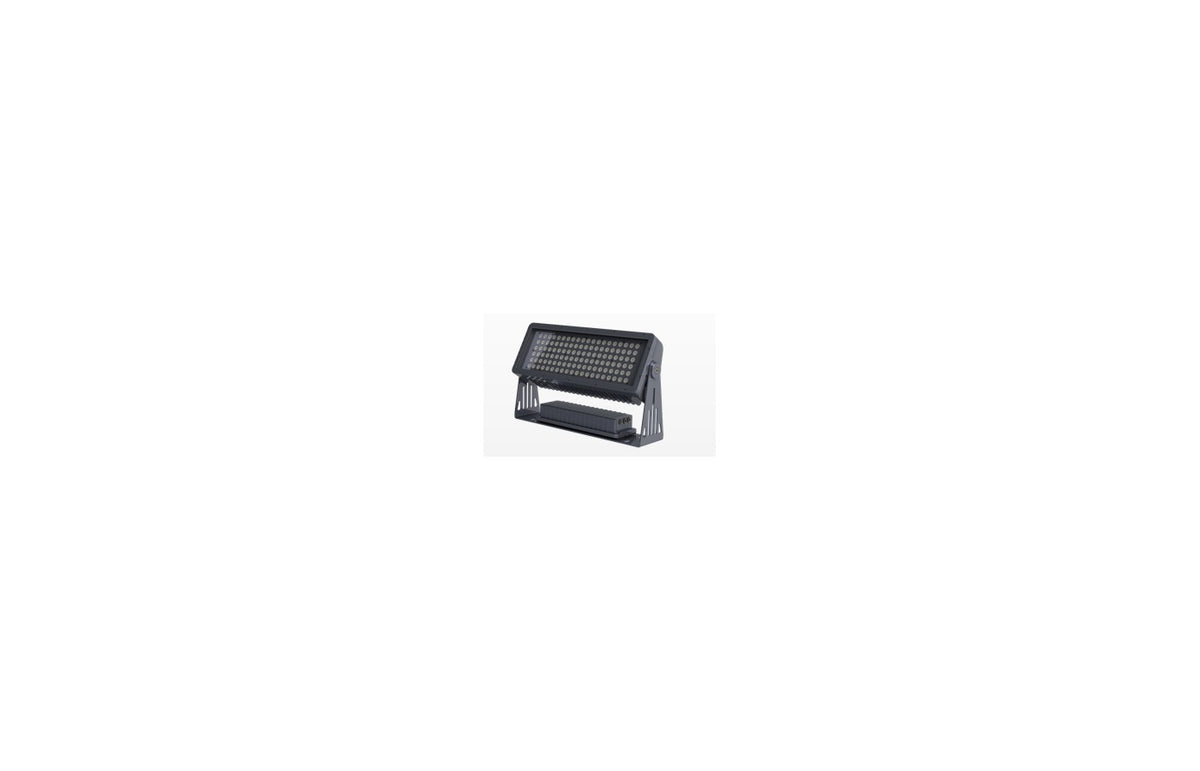

TG21 architectural flood-light reference platform with AC220V input, 360W RGBW output, DMX512 control, multiple optical options and IP65 protection.
Model data
Technical specifications
Product familyArchitectural Lighting
SeriesTG
Voltage220V
Rated power360.0W
ControlDMX512
Light outputRGBW
IP ratingIP65
Dimensions643 × 248 × 215 mm
Beam angle8–60° / 20×40° / 20×55°
Reference SKUW615P

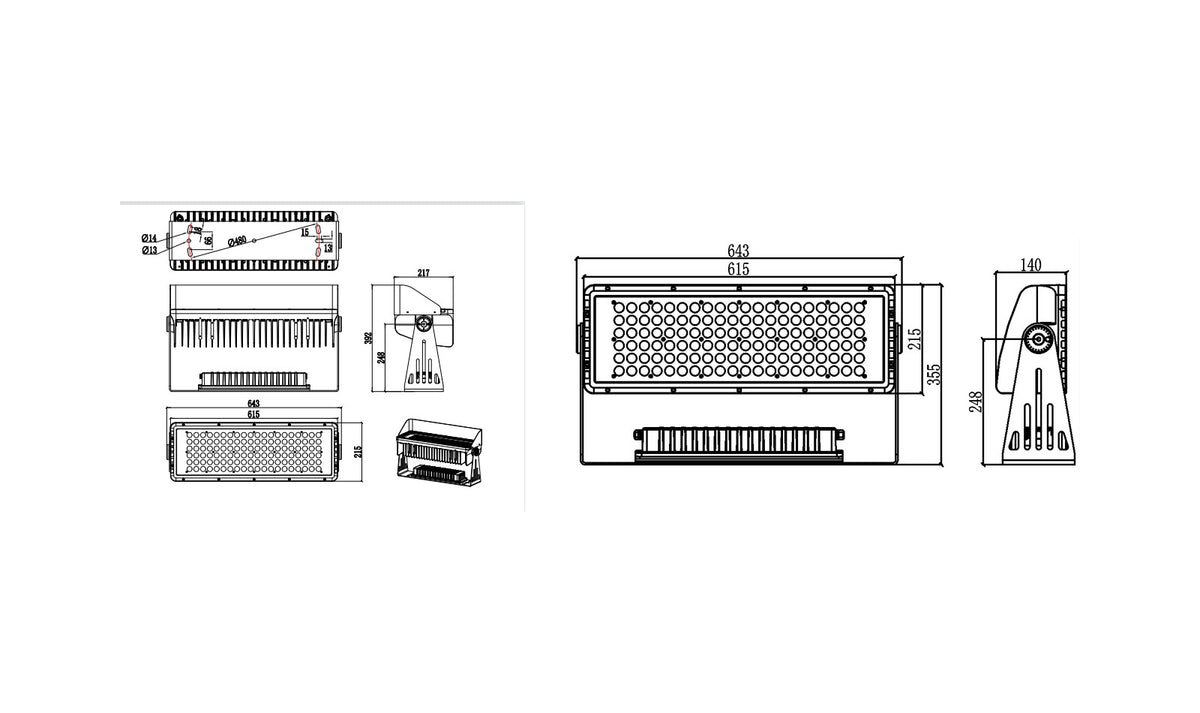

Mechanical reference
Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Light output | Voltage | Rated power | Control |
|---|---|---|---|
| RGBW | 220V AC | 360W | DMX512 |
Engineering reference
Technical information & downloads
LED / light source
3535 RGBW 4-in-1 × 112
Cable / connector
AC power cable plus separate signal cable / project connector configuration
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
