Architectural Point Light

JD32

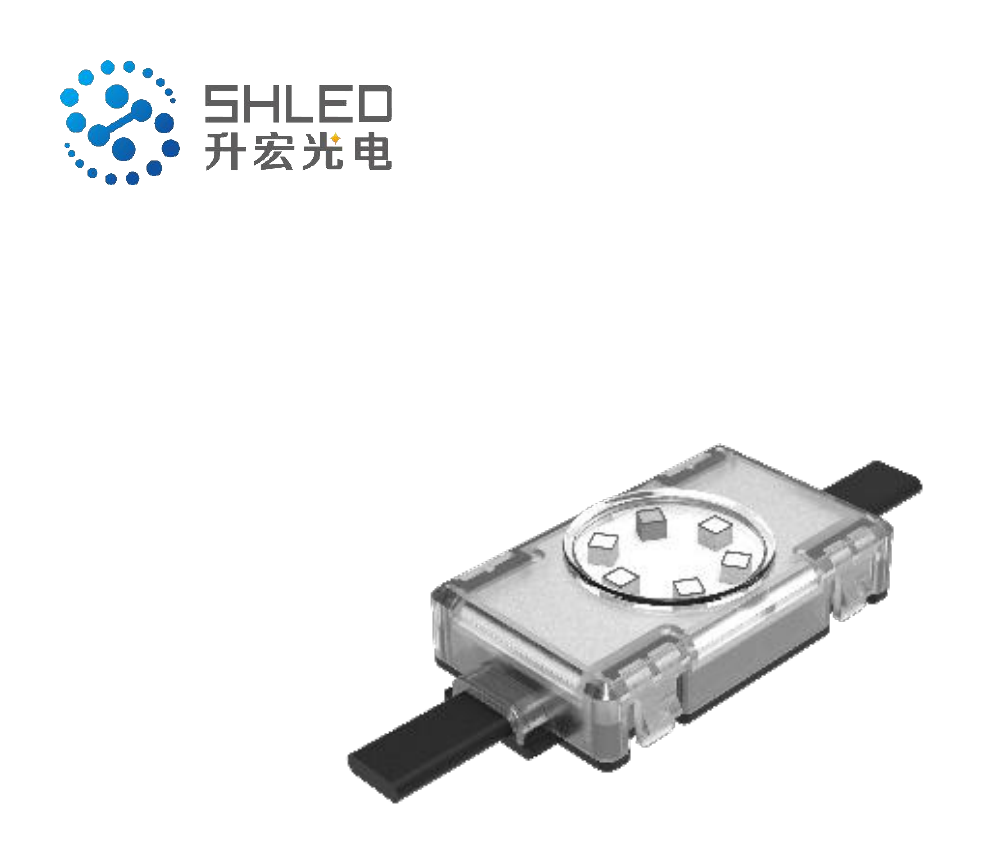

Compact architectural pixel point light for profile-based facade installations, available in 24V and 48V RGB/RGBW configurations with DMX512 control, high grayscale and IP67 protection.

Send Your Project
JD32

Model data

Technical specifications

Product familyArchitectural Lighting
SeriesJD
Voltage24 / 48V
Rated power1.4 / 1.8W
ControlDMX512
Light outputRGB / RGBW
CCT2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
IP ratingIP67
Dimensions65 × 33.5 × 14 mm
Beam angle110°

Mechanical reference

Dimension drawing & engineering notes

JD32

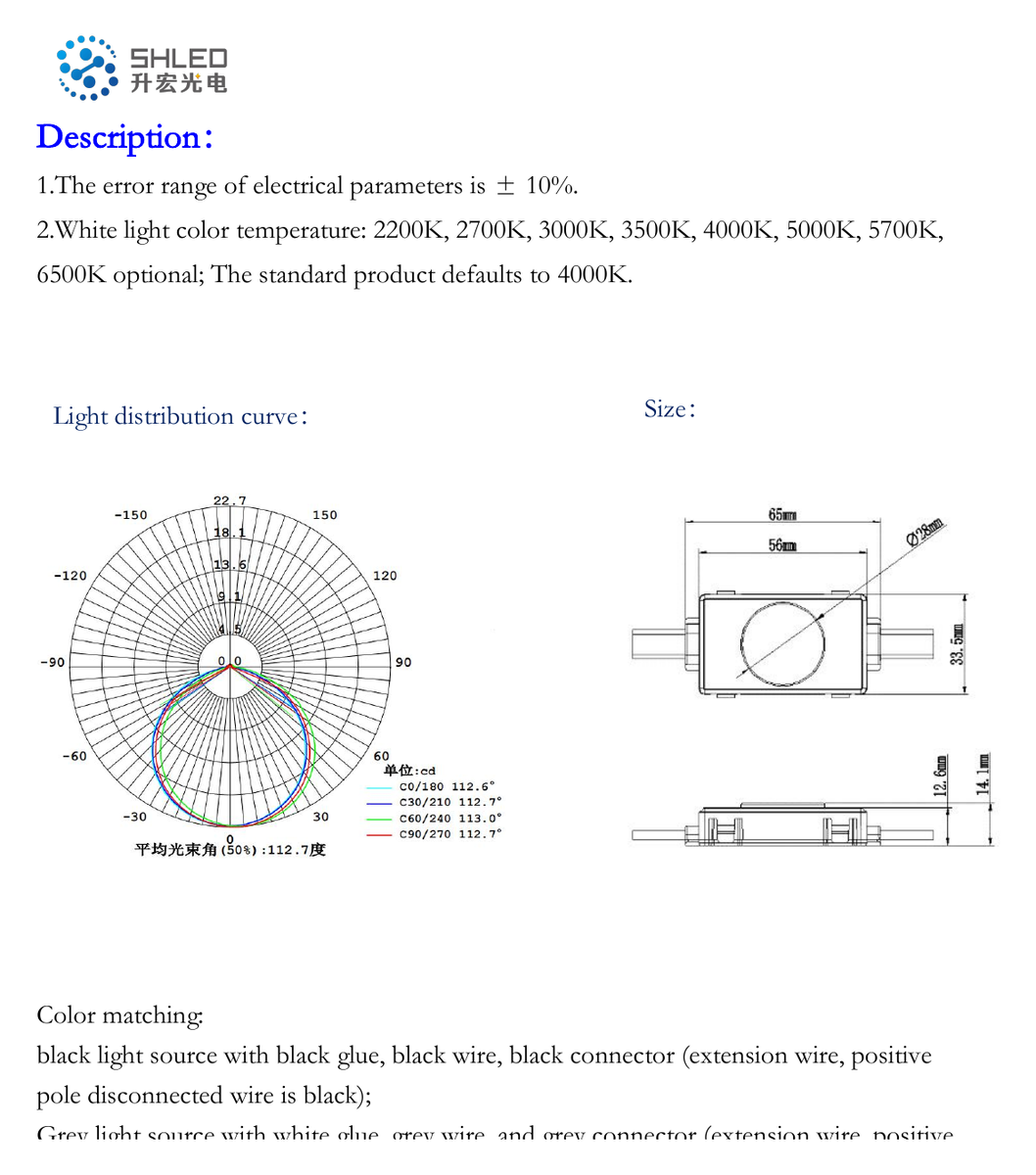

JD32 · Reference dimension drawing

Configuration matrix

Available model configurations

Light outputVoltageRated powerControl
RGB24V DC1.4WDMX512
RGB48V DC1.4WDMX512
RGBW24V DC1.8WDMX512
RGBW48V DC1.8WDMX512

Engineering reference

Technical information & downloads

LED / light source

3535 RGB × 6; RGBW versions add 2835 White × 2.

Cable / connector

2 × 0.75 mm² power + 3 × 0.3 mm² DMX signal wiring.

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
