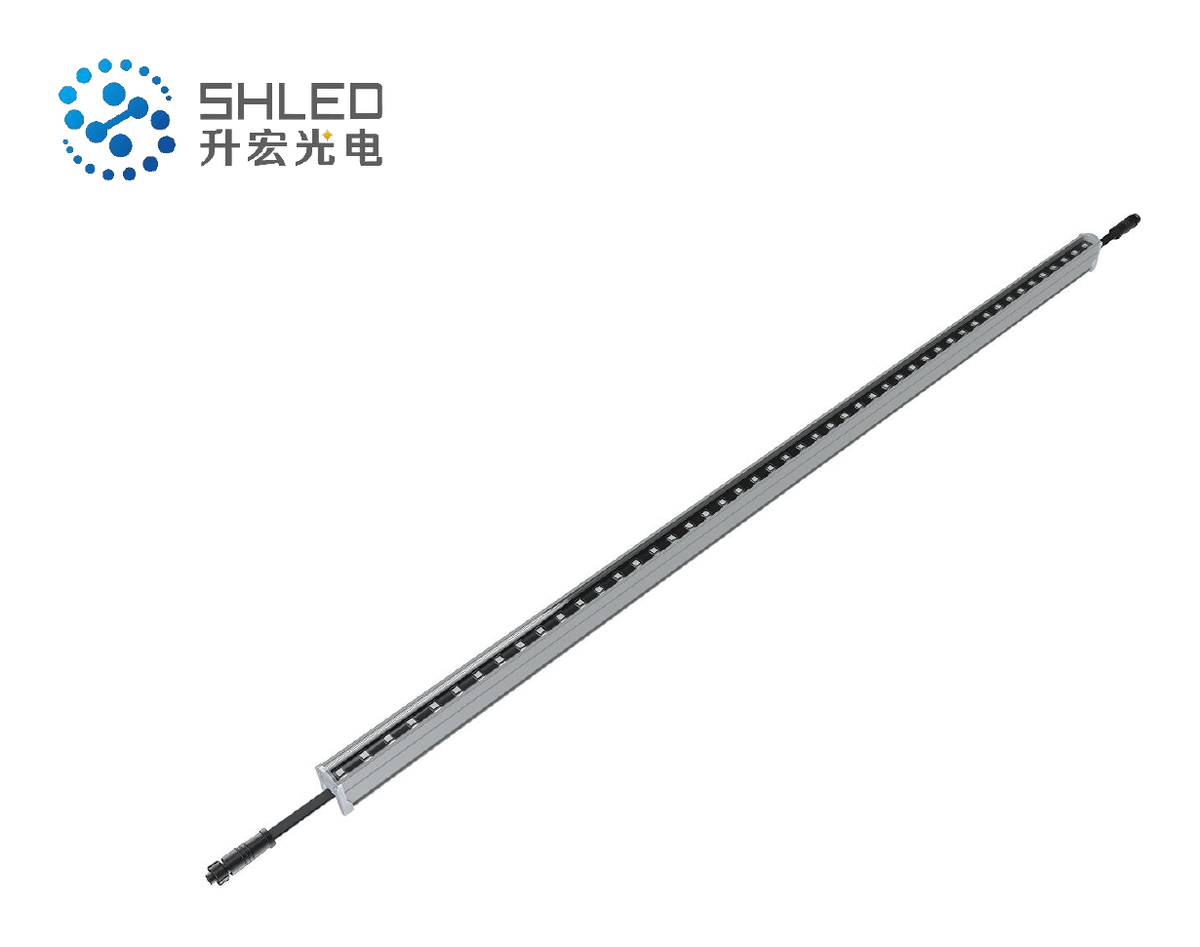

Architectural Linear Light

XT12

24V architectural linear light with RGB, RGBW and white DMX configurations in three standard lengths.

Send Your Project

Model data

Technical specifications

Product familyArchitectural Lighting

SeriesXT

Length300 / 500 / 1000 mm

Voltage24V

Rated power4.5 / 5.5 / 6.0 / 7.5 / 12.0 / 15.0W

ControlDMX512 / ON/OFF

Light outputRGB / RGBW / White

CCT2700K / 3000K / 4000K / 5000K / 5700K / 6500K

IP ratingIP65

Dimensions1000 / 500 / 300 mm; 26.8 × 39.2 mm profile

Beam angle110°

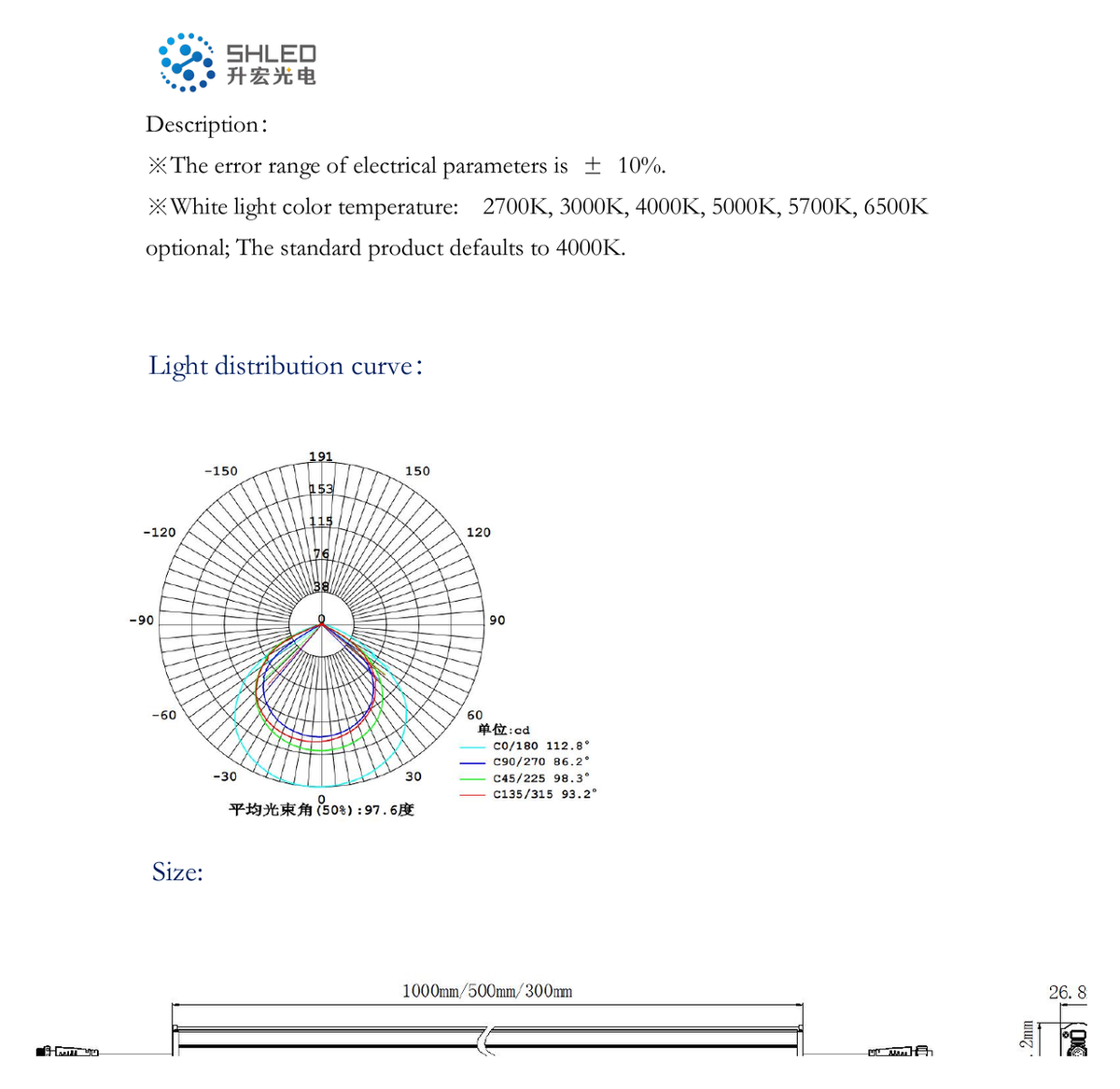

Mechanical reference

Dimension drawing & engineering notes

Configuration matrix

Available model configurations

Length	Light output	Voltage	Rated power	Control	Pixel segments
1000 mm	RGB	24V DC	12W	DMX512	8
1000 mm	RGBW	24V DC	15W	DMX512	8
1000 mm	White	24V DC	12W	DMX512	8
1000 mm	White	24V DC	12W	ON/OFF	—
500 mm	RGB	24V DC	6W	DMX512	4
500 mm	RGBW	24V DC	7.5W	DMX512	4
500 mm	White	24V DC	6W	DMX512	4
500 mm	White	24V DC	6W	ON/OFF	—
300 mm	RGB	24V DC	4.5W	DMX512	3
300 mm	RGBW	24V DC	5.5W	DMX512	3
300 mm	White	24V DC	4.5W	DMX512	3
300 mm	White	24V DC	4.5W	ON/OFF	—

Engineering reference

Technical information & downloads

LED / light source

5050 RGB / RGBW / White

Cable / connector

DMX versions: 2×0.75 mm² + 3×0.3 mm²; white ON/OFF: 2×0.75 mm²

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
