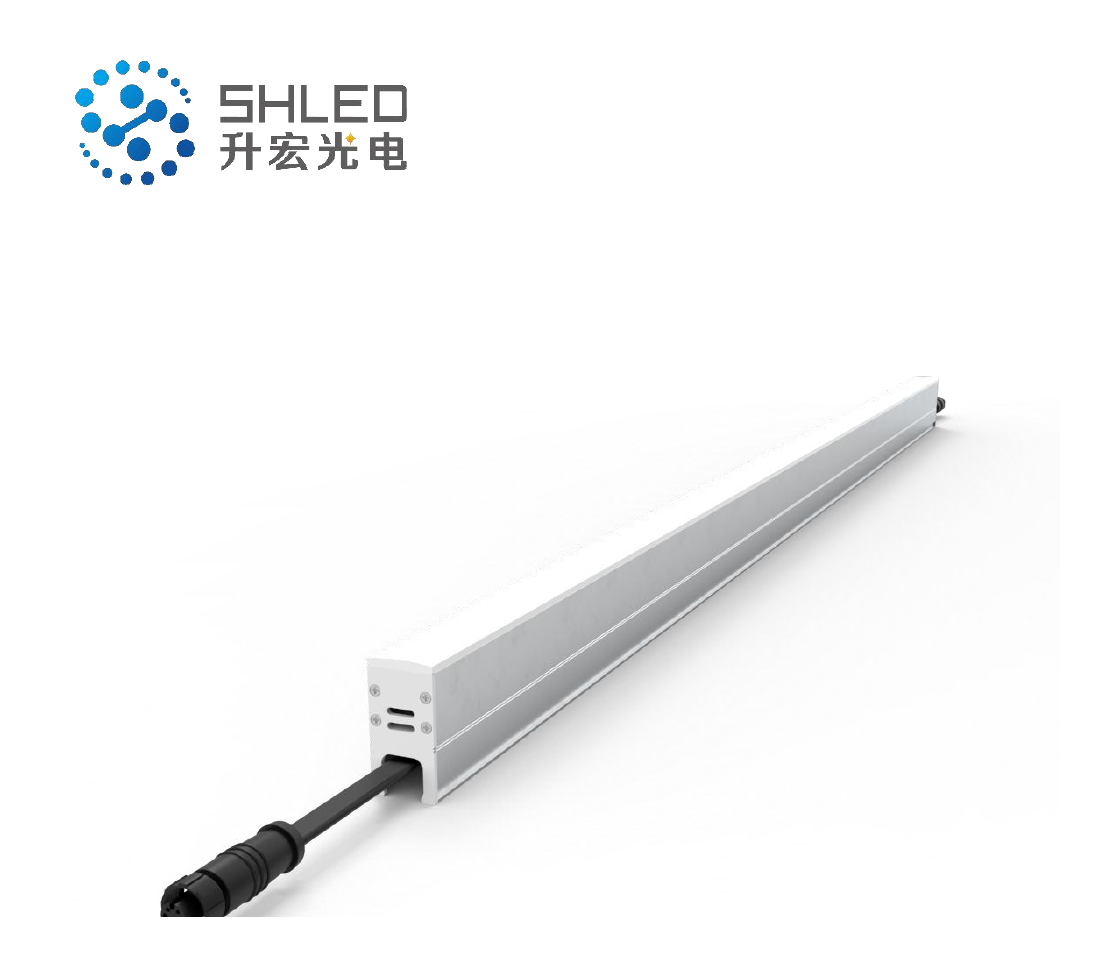

Architectural Linear Light

XT26

Architectural linear platform with 24V configurations and a 1000 mm 24/48V option for longer-run projects.

Send Your Project

Model data

Technical specifications

Product familyArchitectural Lighting

SeriesXT

Length300 / 500 / 1000 mm

Voltage24 / 48V

Rated power4.5 / 5.5 / 6.0 / 7.5 / 12.0 / 15.0W

ControlDMX512 / ON/OFF

Light outputRGB / RGBW / White

CCT2700K / 3000K / 4000K / 5000K / 5700K / 6500K

IP ratingIP65

Dimensions1000 / 500 / 300 mm; 23.6 × 47.5 mm profile

Beam angle120°

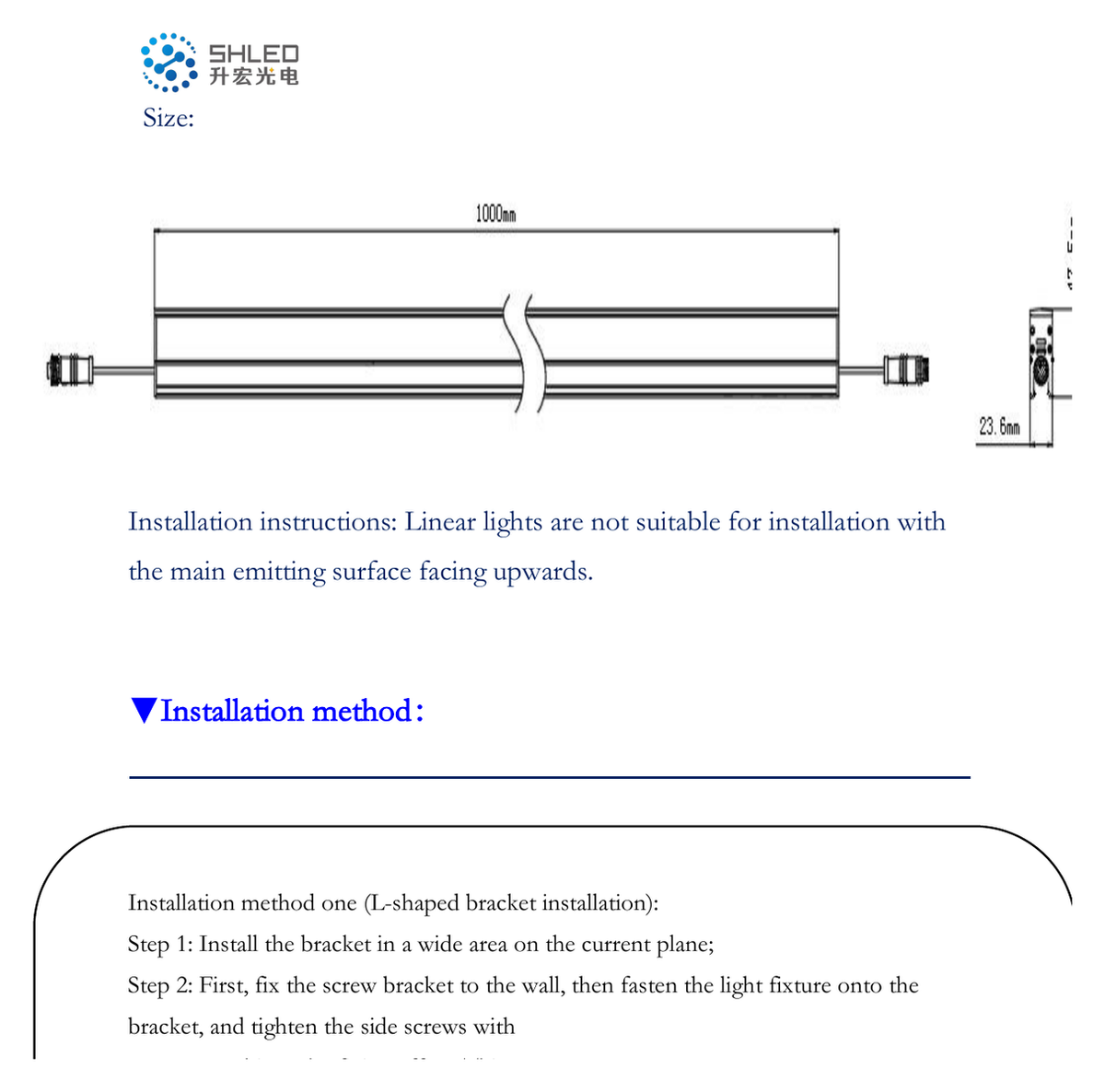

Mechanical reference

Dimension drawing & engineering notes

Configuration matrix

Available model configurations

Length	Light output	Voltage	Rated power	Control	Pixel segments
1000 mm	RGB	24V DC	12W	DMX512	8
1000 mm	RGB	48V DC	12W	DMX512	8
1000 mm	RGBW	24V DC	15W	DMX512	8
1000 mm	RGBW	48V DC	15W	DMX512	8
1000 mm	White	24V DC	12W	DMX512	8
1000 mm	White	48V DC	12W	DMX512	8
1000 mm	White	24V DC	12W	ON/OFF	—
1000 mm	White	48V DC	12W	ON/OFF	—
500 mm	RGB	24V DC	6W	DMX512	4
500 mm	RGBW	24V DC	7.5W	DMX512	4
500 mm	White	24V DC	6W	DMX512	4
500 mm	White	24V DC	6W	ON/OFF	—
300 mm	RGB	24V DC	4.5W	DMX512	3
300 mm	RGBW	24V DC	5.5W	DMX512	3
300 mm	White	24V DC	4.5W	DMX512	3
300 mm	White	24V DC	4.5W	ON/OFF	—

Engineering reference

Technical information & downloads

LED / light source

5050 RGB / RGBW / White

Cable / connector

DMX versions: 2 × 0.75 mm² power + 3 × 0.3 mm² signal; white ON/OFF versions use 2 × 0.75 mm² power.

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
