Architectural Linear Light

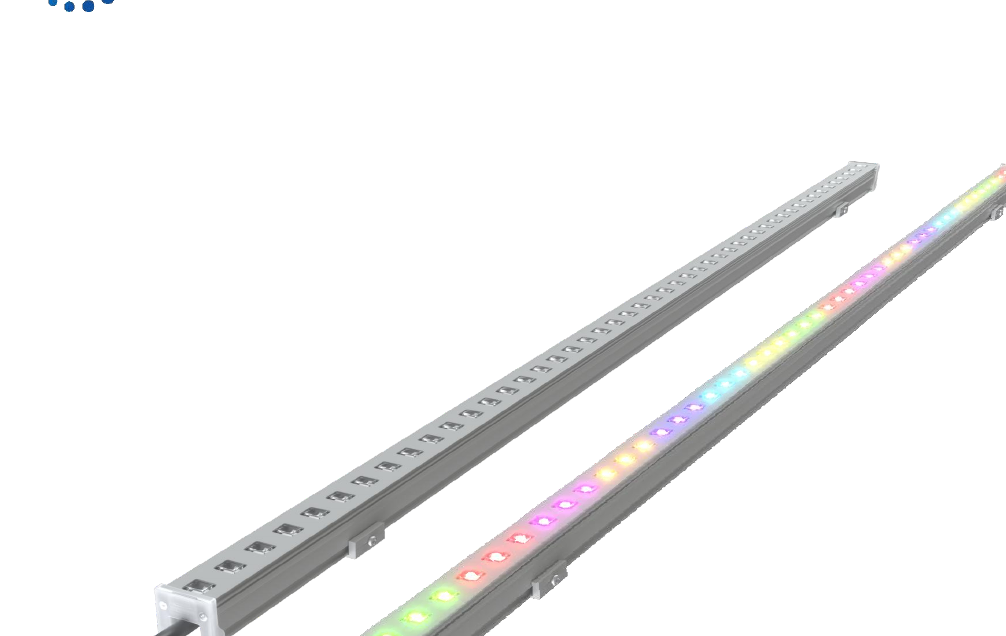

XT20
48V RGB architectural linear light designed for longer-run facade applications.
Model data
Technical specifications
Product familyArchitectural Lighting
SeriesXT
Length250 / 500 / 1000 mm
Voltage48V
Rated power2.5 / 5.0 / 10.0W
ControlDMX512
Light outputRGB
IP ratingIP65
Dimensions1000 / 500 / 250 mm; 29.2 × 28.2 mm profile
Beam angle106° × 95°

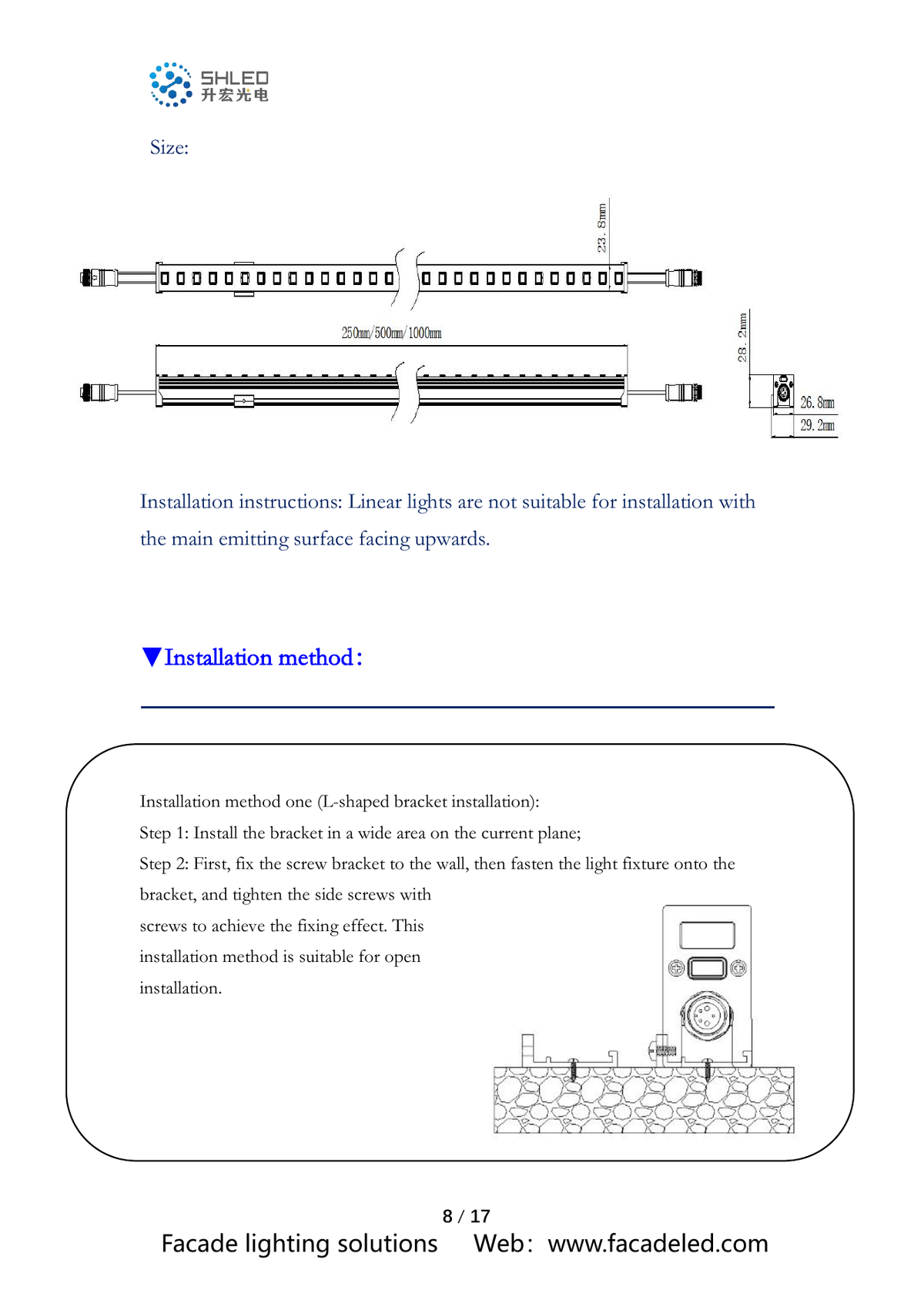

Mechanical reference
Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Length | Light output | Voltage | Rated power | Control | Pixel segments |
|---|---|---|---|---|---|
| 1000 mm | RGB | 48V DC | 10W | DMX512 | 16 |
| 500 mm | RGB | 48V DC | 5W | DMX512 | 8 |
| 250 mm | RGB | 48V DC | 2.5W | DMX512 | 4 |
Engineering reference
Technical information & downloads
LED / light source
5050 RGB
Cable / connector
2 × 2.0 mm² power + 3 × 0.25 mm² DMX signal wiring.
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
