Architectural Wall Washer
XT14

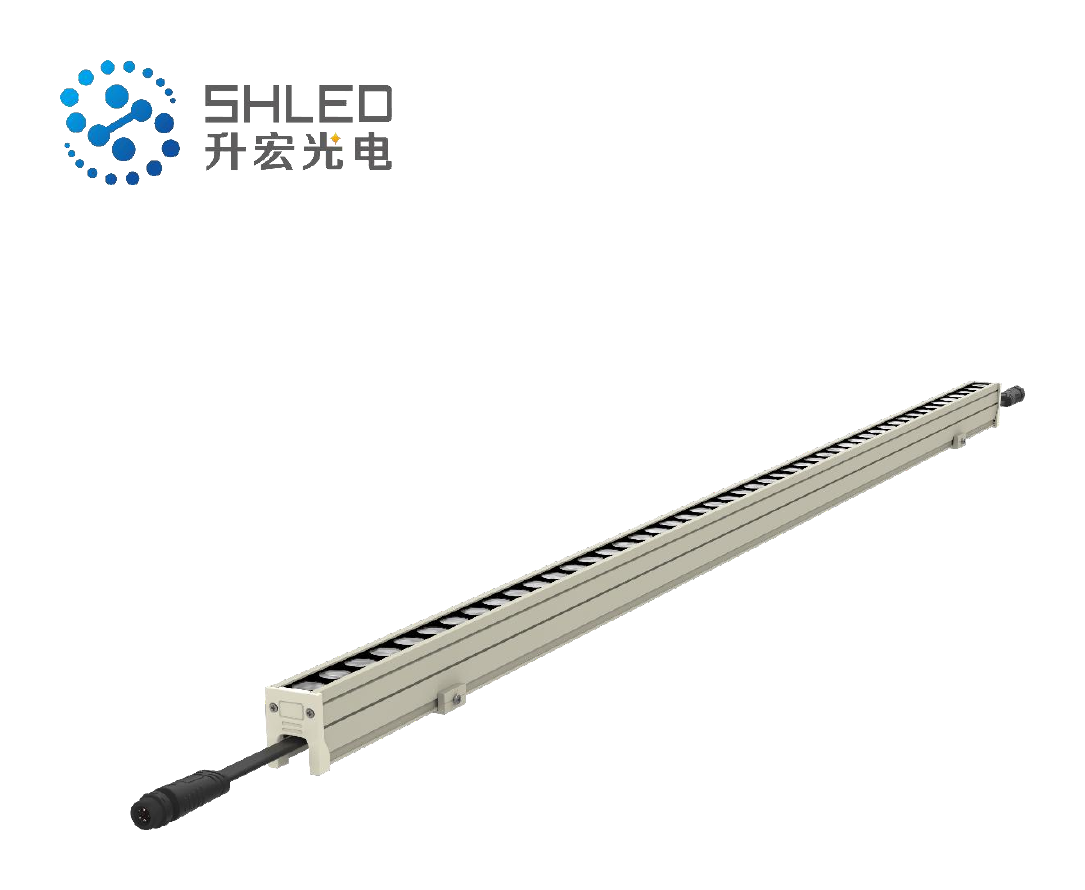

Slim wall-wash linear platform with multiple mounting brackets and narrow/elliptical optics for close-to-facade integration.
Model data
Technical specifications
Product familyArchitectural Lighting
SeriesXT
Length300 / 500 / 1000 mm
Voltage24V
Rated power5.5 / 6.0 / 7.5 / 12.0 / 15.0W
ControlDMX512 / ON/OFF
Light outputRGB / RGBW / White
CCT4000K
IP ratingIP65
Dimensions300 / 500 / 1000 mm; 26.8 × 36 mm profile
Beam angle45° / 15×45°
Mechanical reference

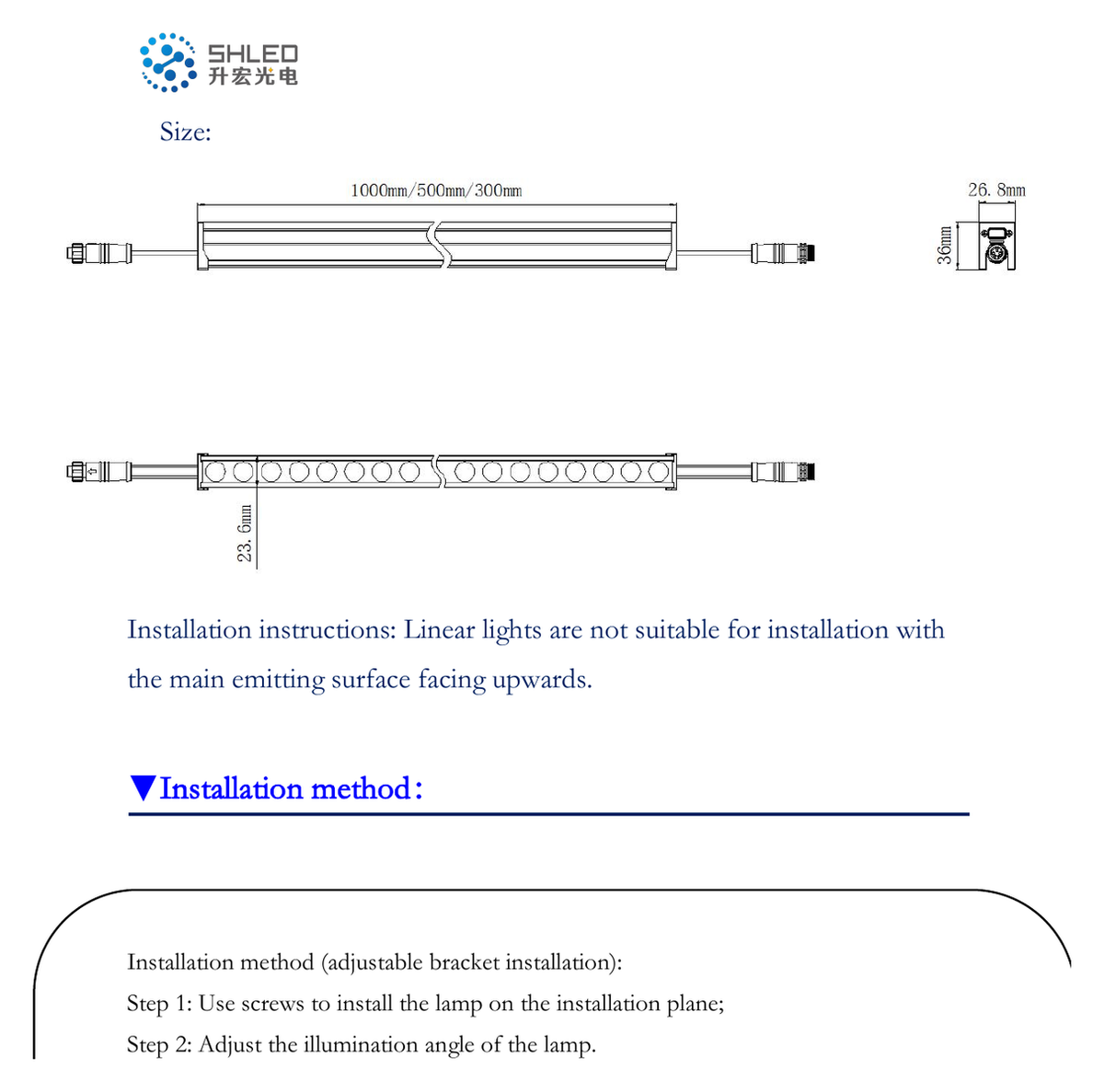

Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Length | Light output | Voltage | Rated power | Control | Pixel segments |
|---|---|---|---|---|---|
| 1000 mm | RGB | 24V DC | 12W | DMX512 | 8 |
| 1000 mm | RGBW | 24V DC | 15W | DMX512 | 8 |
| 1000 mm | White | 24V DC | 12W | DMX512 | 8 |
| 1000 mm | White | 24V DC | 15W | ON/OFF | — |
| 500 mm | RGB | 24V DC | 6W | DMX512 | 4 |
| 500 mm | RGBW | 24V DC | 7.5W | DMX512 | 4 |
| 500 mm | White | 24V DC | 6W | DMX512 | 4 |
| 500 mm | White | 24V DC | 7.5W | ON/OFF | — |
| 300 mm | RGBW | 24V DC | 5.5W | DMX512 | 3 |
Engineering reference
Technical information & downloads
LED / light source
5050 RGB / 5050 RGBW / 5050 or 2835 White
Cable / connector
DMX: 2×0.75 mm² + 3×0.3 mm²; constant white: 2×0.75 mm²
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
