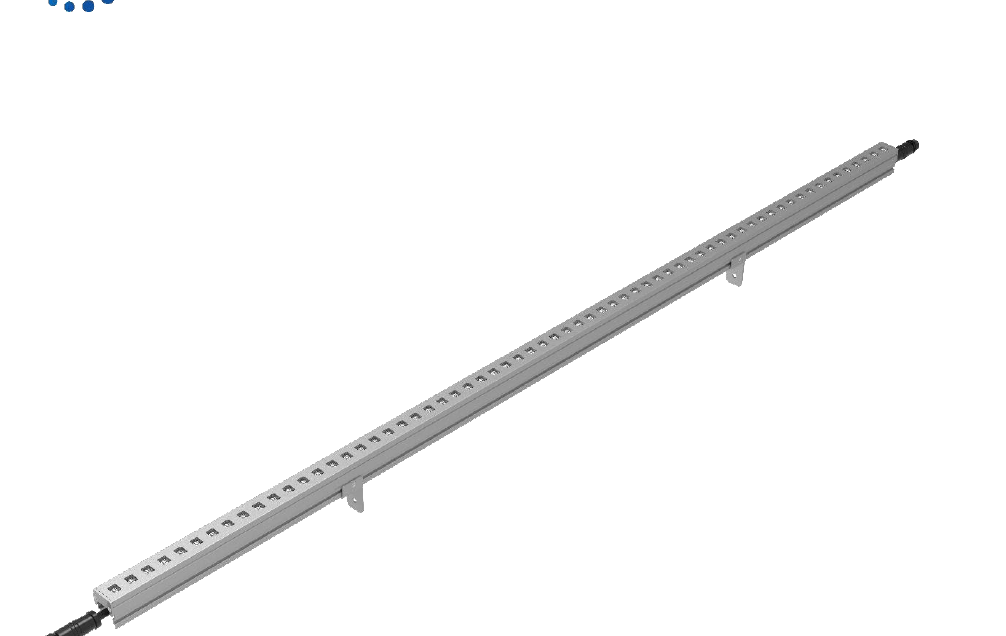

Architectural Linear Light
XT46
High-pixel-density 1000 mm architectural linear light for dynamic facade effects.
Model data
Technical specifications
Product familyArchitectural Lighting
SeriesXT
Length1000 mm
Voltage24V
Rated power10.0W
ControlDMX512
Light outputRGB / RGBW
IP ratingIP65
Dimensions1000 mm; 24 × 59.8 mm profile
Beam angle120°

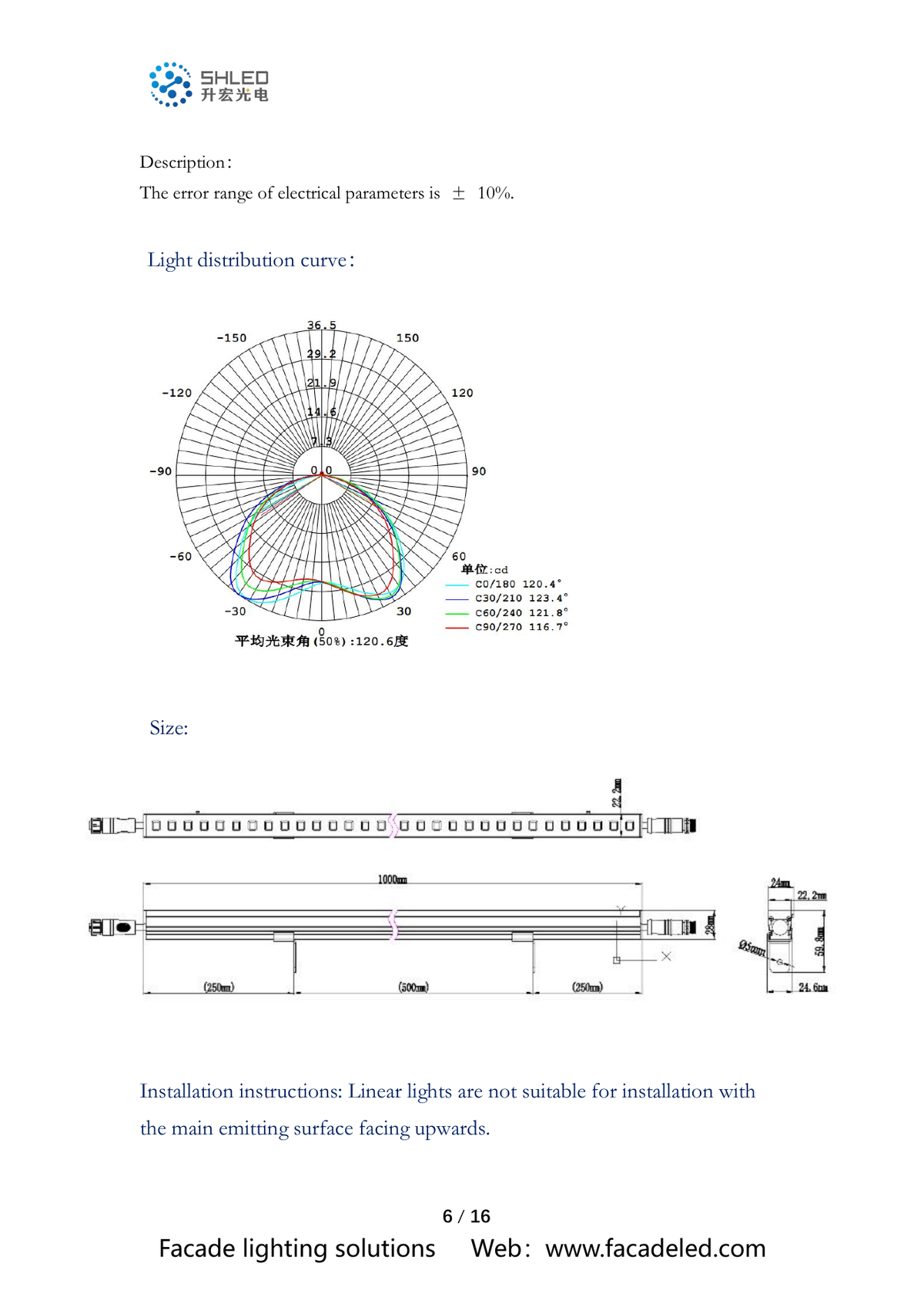

Mechanical reference
Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Length | Light output | Voltage | Rated power | Control | Pixel segments |
|---|---|---|---|---|---|
| 1000 mm | RGB | 24V DC | 10W | DMX512 | 32 |
| 1000 mm | RGBW | 24V DC | 10W | DMX512 | 64 |
Engineering reference
Technical information & downloads
LED / light source
3535 RGB × 64 / RGBW × 64
Cable / connector
2 × 0.75 mm² power + 3 × 0.3 mm² DMX signal wiring.
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
