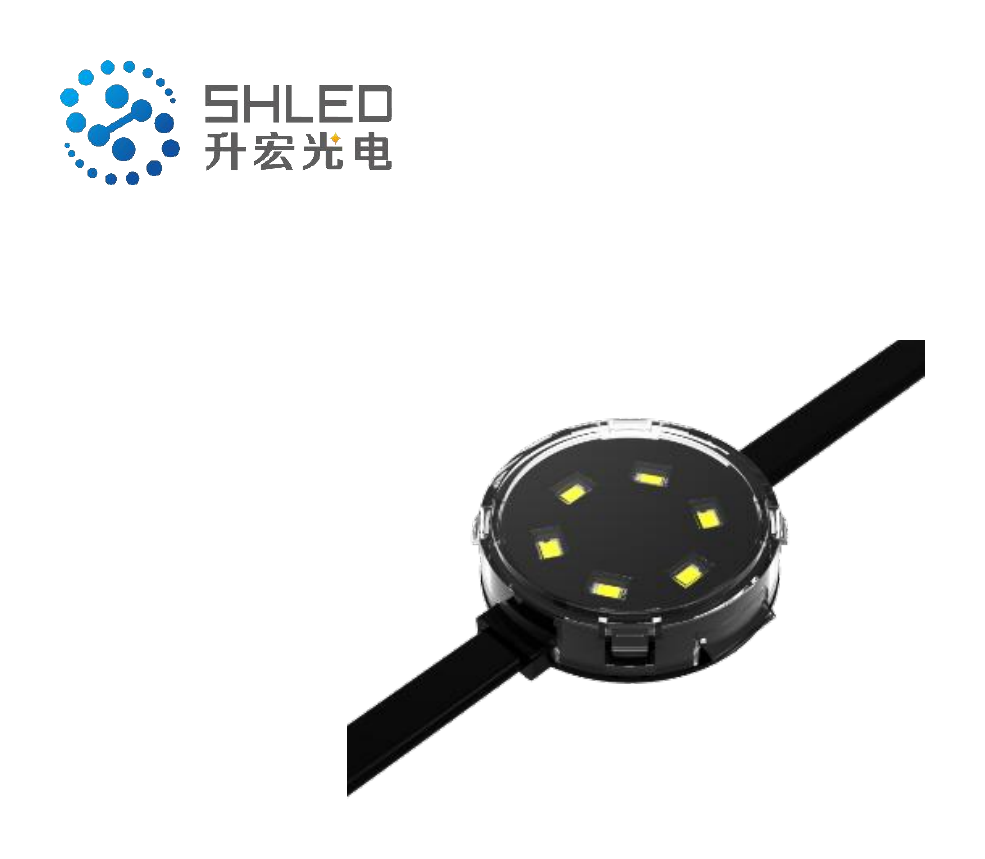

Architectural Point Light

JD18

Compact 24V architectural pixel point light for facade media and landscape applications, with RGB, RGBW and white options, DMX512/TTL/ON-OFF control, multiple installation methods and IP67 protection.

Send Your Project

Model data

Technical specifications

Product familyArchitectural Lighting

SeriesJD

Voltage24V

Rated power1.8 / 2.0 / 2.4W

ControlDMX512 / TTL / ON/OFF

Light outputRGB / RGBW / White

CCT2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K

IP ratingIP67

Dimensions56 × 50 × 14.5 mm

Beam angle120°

Units / m8

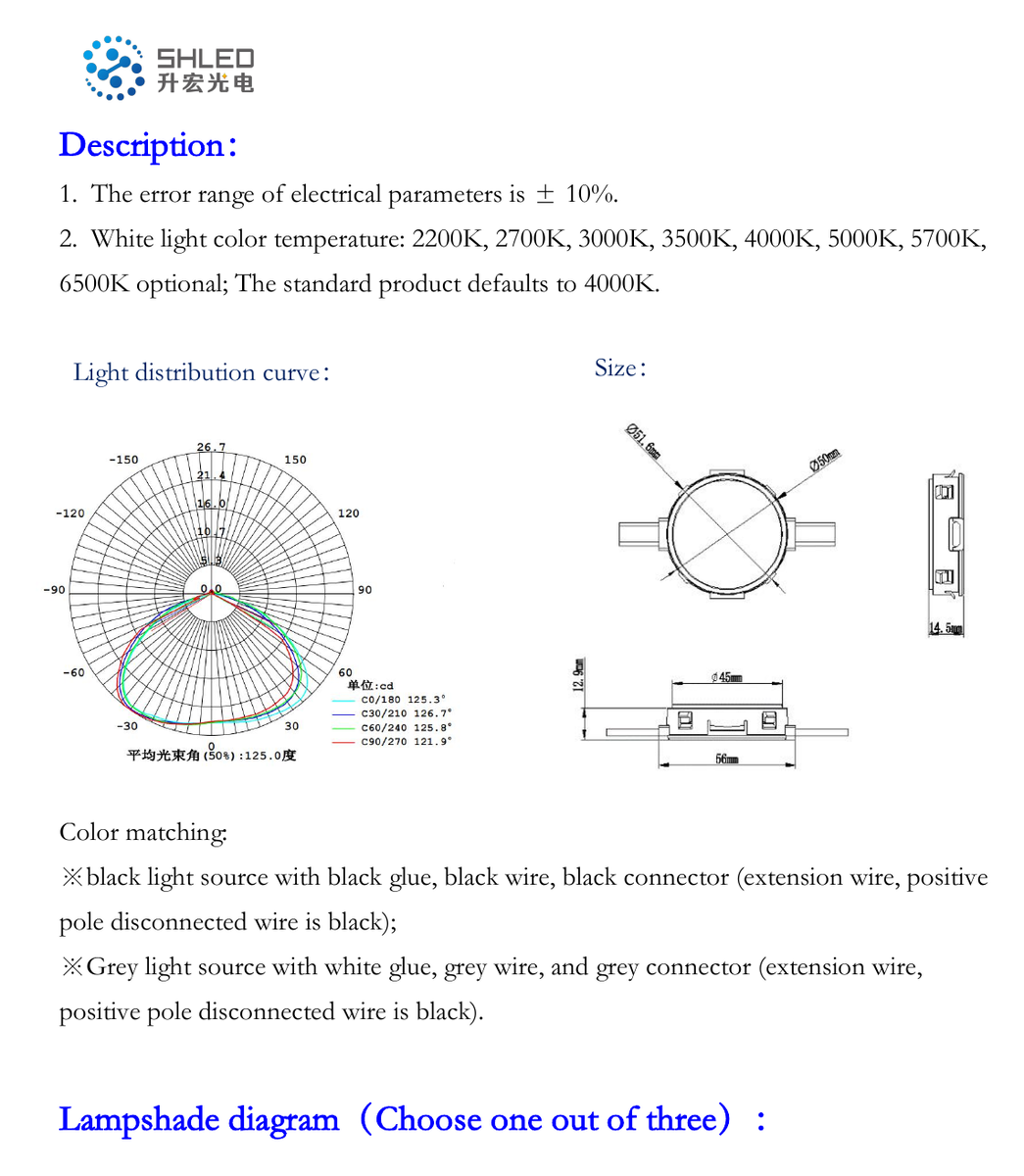

Mechanical reference

Dimension drawing & engineering notes

Configuration matrix

Available model configurations

Light output	Voltage	Rated power	Control
RGB	24V DC	1.8W	DMX512
RGB	24V DC	1.8W	TTL
RGBW	24V DC	2.4W	DMX512
White	24V DC	2W	DMX512
White	24V DC	1.8W	ON/OFF

Engineering reference

Technical information & downloads

LED / light source

3535 RGB × 8; RGBW version adds 2835 White × 4; white version uses 2835 White × 6.

Cable / connector

DMX versions use 2 × 0.75 mm² power + 3 × 0.3 mm² signal; TTL versions use 2 × 0.75 mm² power + TTL signal wiring; ON/OFF white version uses 2-core power.

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
