Architectural Point Light

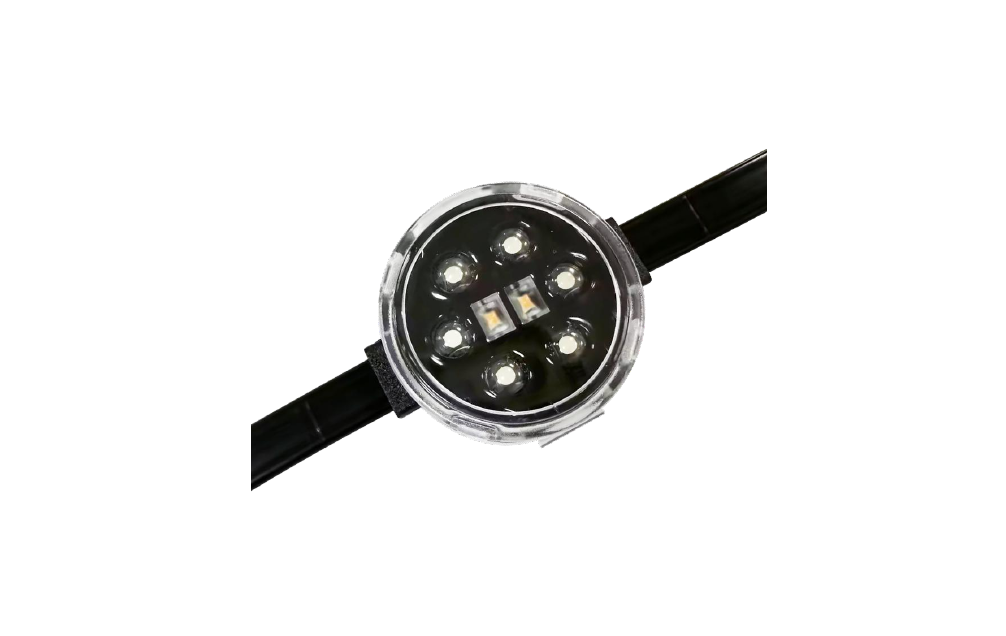

JD42
Higher-output SHLED point-light platform used in international facade projects with RGB, RGBW and white 24V configurations.
Model data
Technical specifications
Product familyArchitectural Lighting
SeriesJD
Voltage24V
Rated power1.2 / 1.4 / 1.8W
ControlDMX512 / TTL / ON/OFF
Light outputRGB / RGBW / White
CCT2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
IP ratingIP67
Dimensions48 × 42 × 14 mm
Beam angle120°
Units / m8
Reference SKUJD42AB03AA

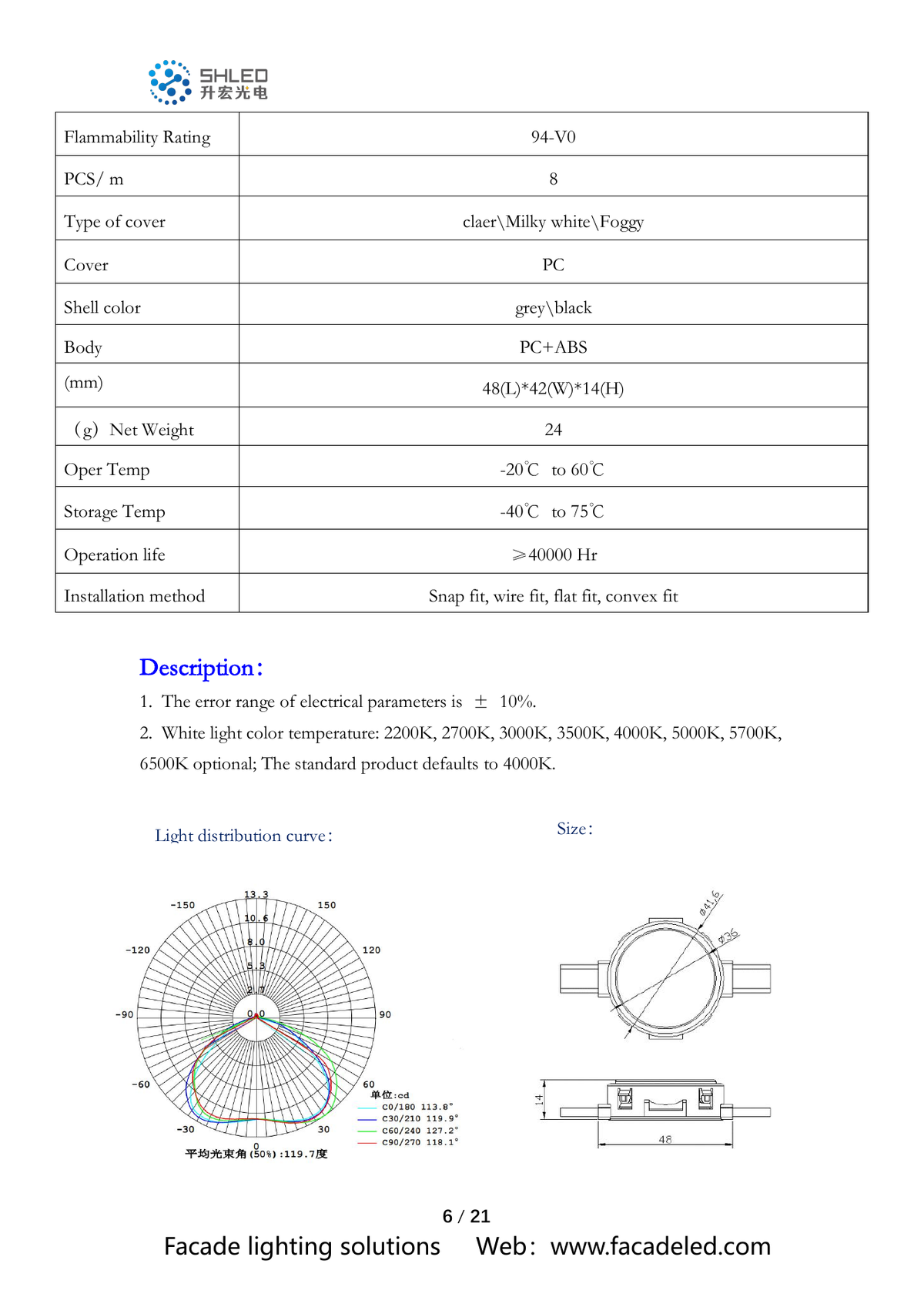

Mechanical reference
Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Light output | Voltage | Rated power | Control |
|---|---|---|---|
| RGB | 24V DC | 1.4W | DMX512 |
| RGB | 24V DC | 1.4W | TTL |
| RGBW | 24V DC | 1.8W | DMX512 |
| RGBW | 24V DC | 1.8W | TTL |
| White | 24V DC | 1.4W | DMX512 |
| White | 24V DC | 1.2W | ON/OFF |
Engineering reference
Technical information & downloads
LED / light source
3535 RGB × 6; RGBW versions add 2835 White × 2; white versions use 2835 White × 6.
Cable / connector
DMX versions use 2 × 0.75 mm² power + 3 × 0.3 mm² signal; TTL versions use 2 × 0.75 mm² power + TTL signal conductor; white ON/OFF version uses 2-core power.
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
