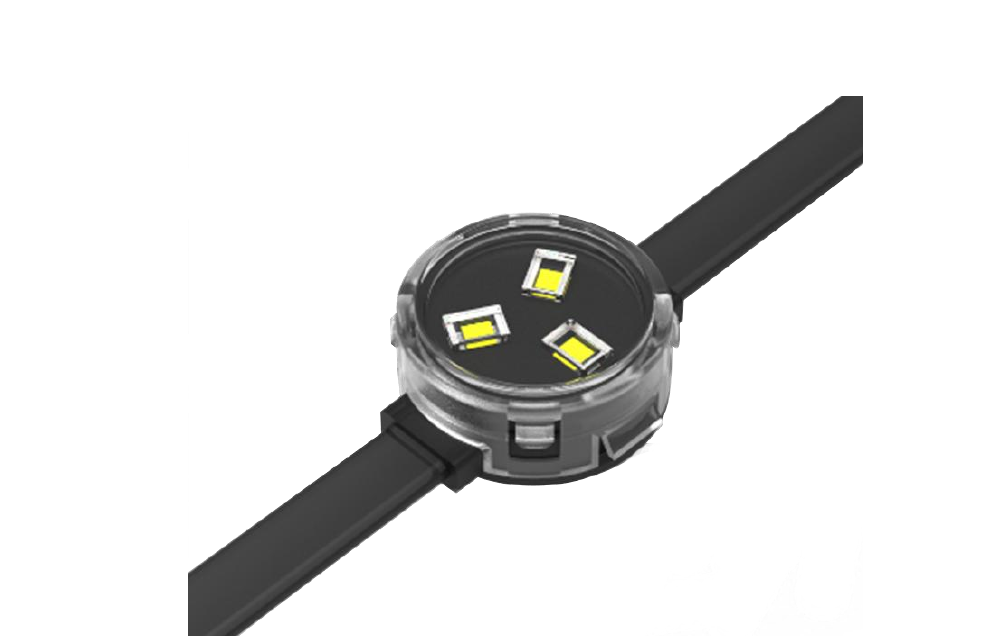

Architectural Point Light

JD33

Architectural point-light platform with RGB, RGBW and white configurations across 12V and 24V project architectures.

Send Your Project

Model data

Technical specifications

Product familyArchitectural Lighting

SeriesJD

Voltage12 / 24V

Rated power0.7 / 0.9 / 1.0 / 1.2W

ControlDMX512 / TTL / ON/OFF

Light outputRGB / RGBW / White

CCT2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K

IP ratingIP67

Dimensions38 × 33 × 15 mm

Beam angle120° / 100° / 80°

Units / m8

Reference SKUA.01.JD33B04A004

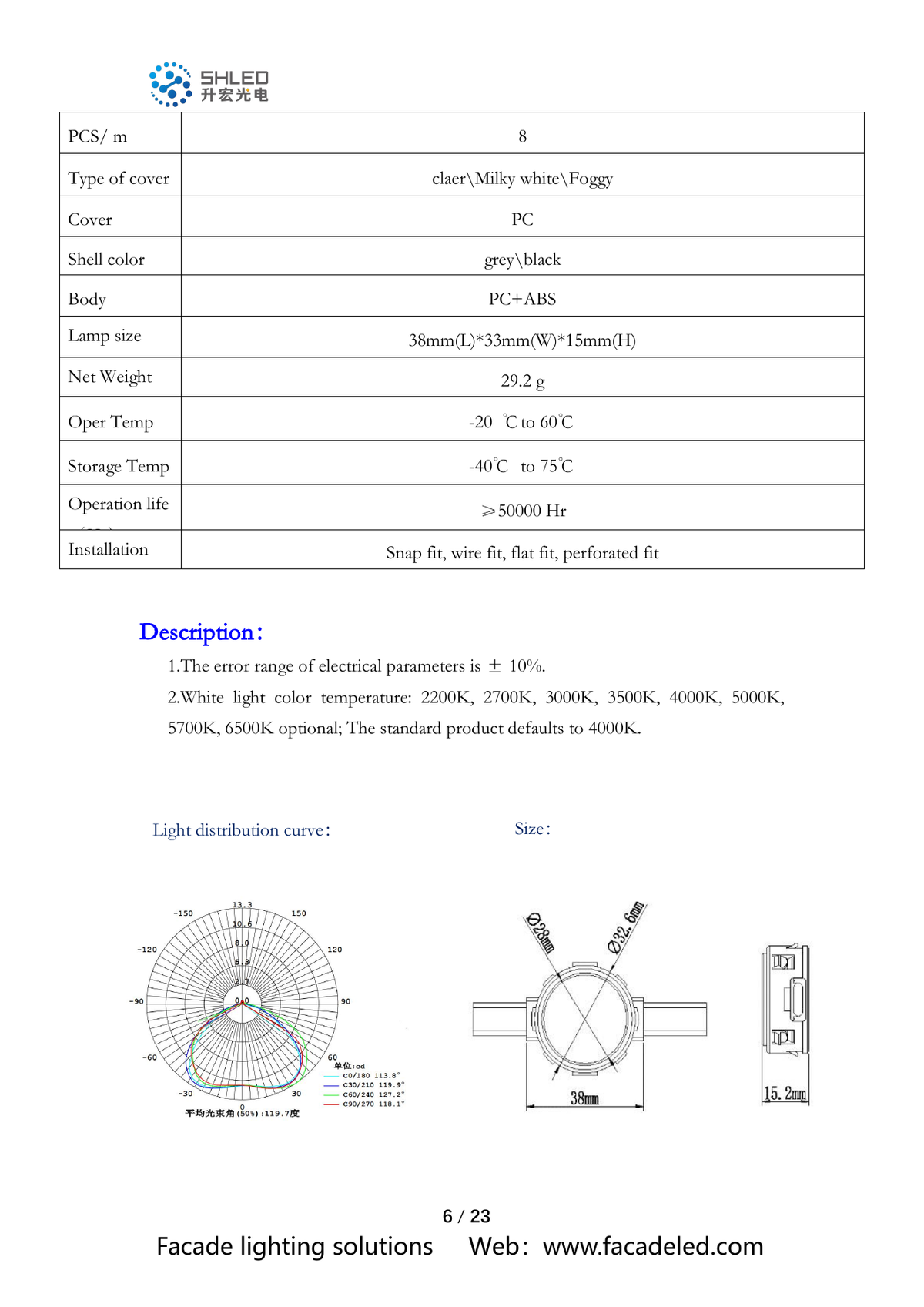

Mechanical reference

Dimension drawing & engineering notes

Configuration matrix

Available model configurations

Light output	Voltage	Rated power	Control
RGB	12V DC	0.7W	DMX512
RGB	24V DC	1.2W	DMX512
RGB	24V DC	1.2W	TTL
RGBW	12V DC	0.9W	DMX512
RGBW	12V DC	0.9W	TTL
White	24V DC	1W	DMX512
White	24V DC	1W	ON/OFF

Engineering reference

Technical information & downloads

LED / light source

3535 RGB platform with 3- or 4-LED RGB versions; RGBW versions add 2835 White; white versions use 2835 White × 3.

Cable / connector

DMX versions use 2 × 0.75 mm² power + 3 × 0.3 mm² signal; TTL versions use 2 × 0.75 mm² power + single TTL signal conductor; white ON/OFF uses 2-core power.

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
