Architectural Point Light

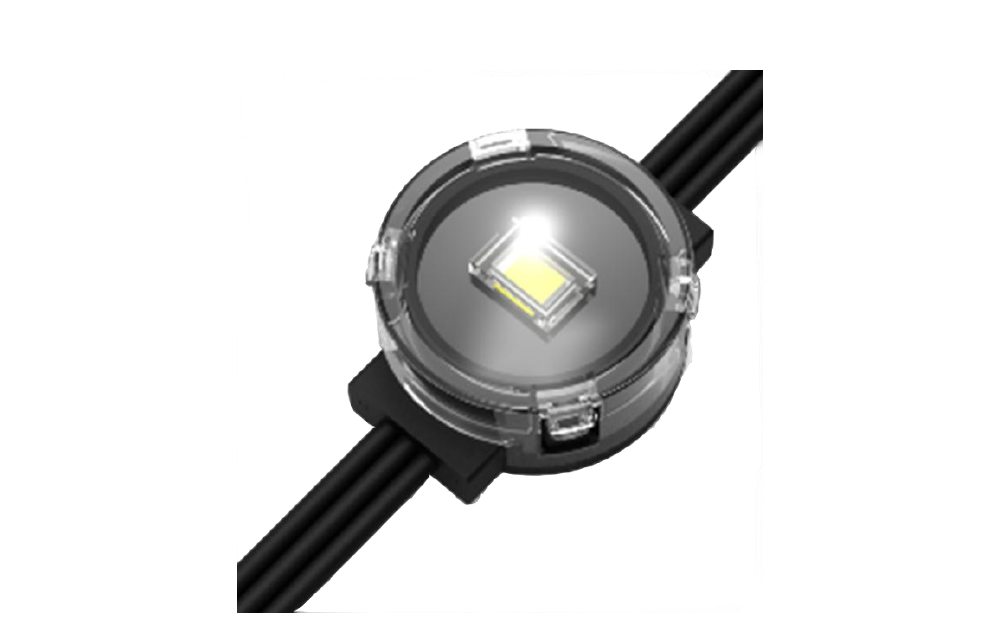

JD22

Compact SHLED point-light platform used for facade pixel layouts. Multiple RGB and white configurations are available for DMX, TTL and constant-output applications.

Send Your Project

Model data

Technical specifications

Product familyArchitectural Lighting

SeriesJD

Voltage12V

Rated power0.5W

ControlDMX512 / TTL / ON/OFF

Light outputRGB / White

CCT2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K

IP ratingIP67

Dimensions26 × 22 × 12.7 mm

Beam angle110°

Units / m10

Reference SKUA.01.JD22B01B001

Mechanical reference

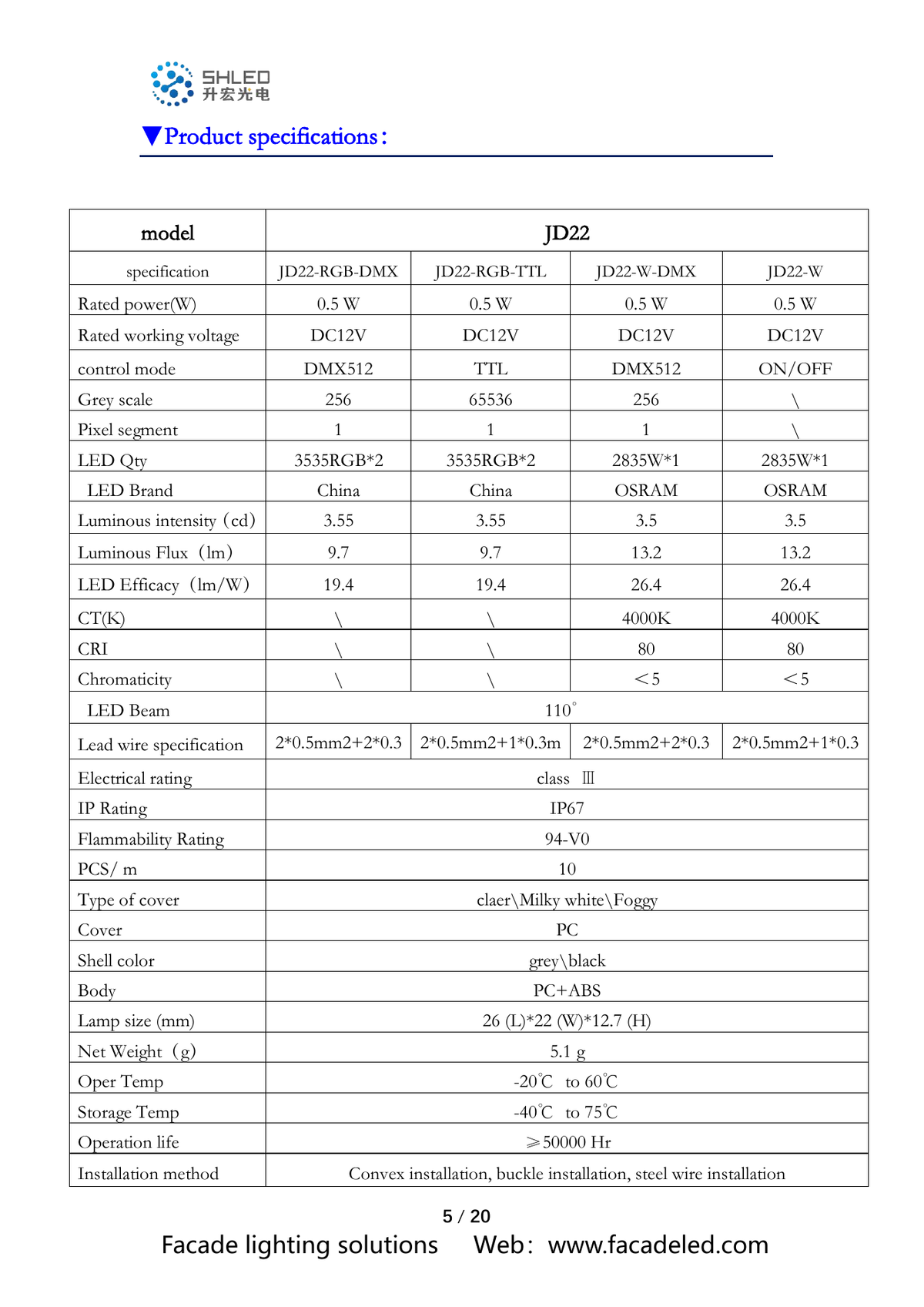

Dimension drawing & engineering notes

Configuration matrix

Available model configurations

Light output	Voltage	Rated power	Control
RGB	12V DC	0.5W	DMX512
RGB	12V DC	0.5W	TTL
White	12V DC	0.5W	DMX512
White	12V DC	0.5W	ON/OFF

Engineering reference

Technical information & downloads

LED / light source

3535 RGB × 2 for RGB versions; 2835 White × 1 for white versions.

Cable / connector

DMX versions: 2 × 0.5 mm² power + 2 × 0.3 mm² signal; TTL versions: 2 × 0.5 mm² power + 1 × 0.3 mm² signal.

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
