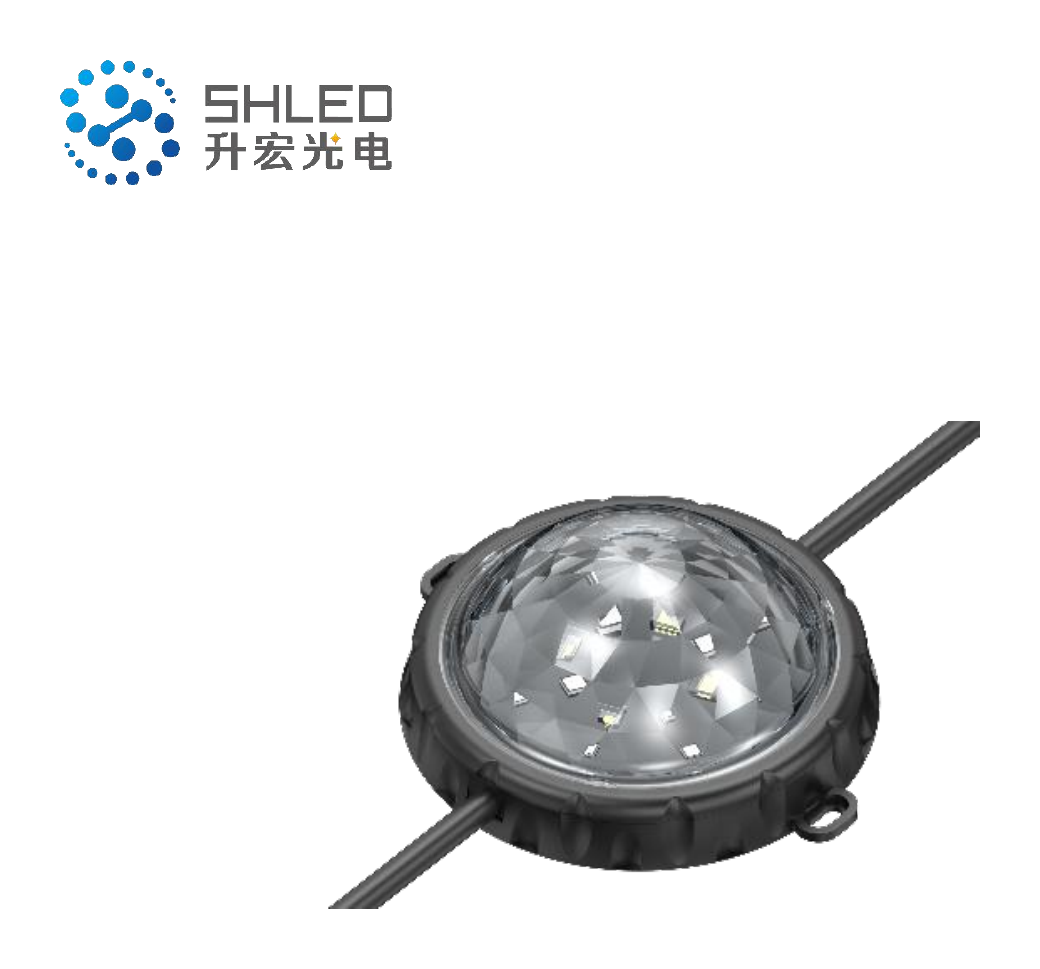

Architectural Point Light

AD11

High-output 24V architectural point light for larger-pixel facade applications, with RGB, RGBW and white configurations, DMX512/ON-OFF control, bracket or screw mounting and IP67 protection.

Send Your Project

Model data

Technical specifications

Product familyArchitectural Lighting

SeriesAD

Voltage24V

Rated power5.0 / 8.0 / 10.0W

ControlDMX512 / ON/OFF

Light outputRGB / RGBW / White

CCT2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K

IP ratingIP67

Dimensions133.9 × 112 × 50 mm

Beam angle110°

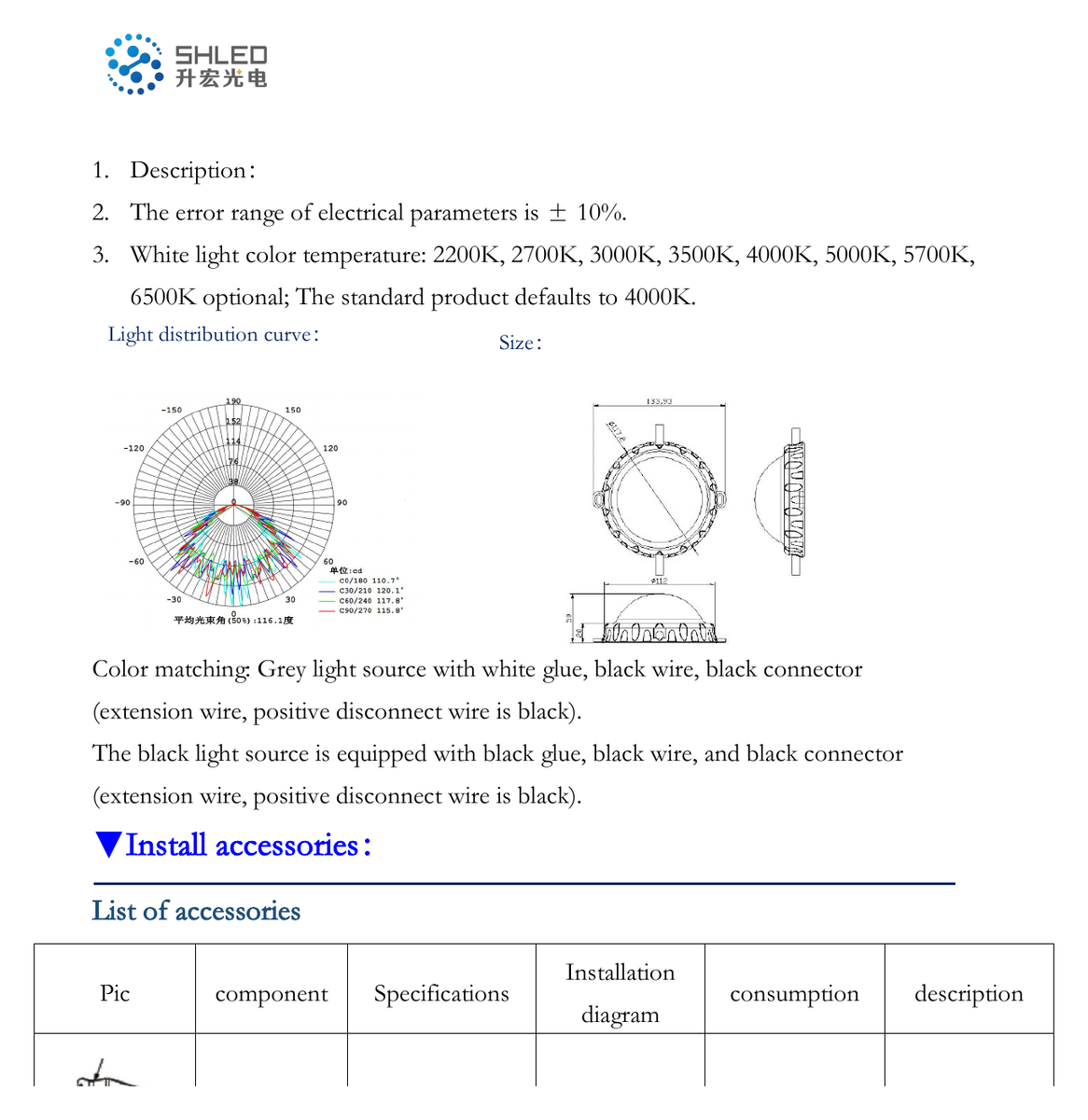

Mechanical reference

Dimension drawing & engineering notes

Configuration matrix

Available model configurations

Light output	Voltage	Rated power	Control
RGB	24V DC	5W	DMX512
RGBW	24V DC	8W	DMX512
White	24V DC	10W	DMX512
White	24V DC	10W	ON/OFF

Engineering reference

Technical information & downloads

LED / light source

3535 RGB × 24; RGBW version adds 2835 White × 12; white versions use 2835 White × 24.

Cable / connector

DMX versions: 2 × 1.0 mm² power + 3 × 0.3 mm² signal; ON/OFF white version: 2 × 1.0 mm².

Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
