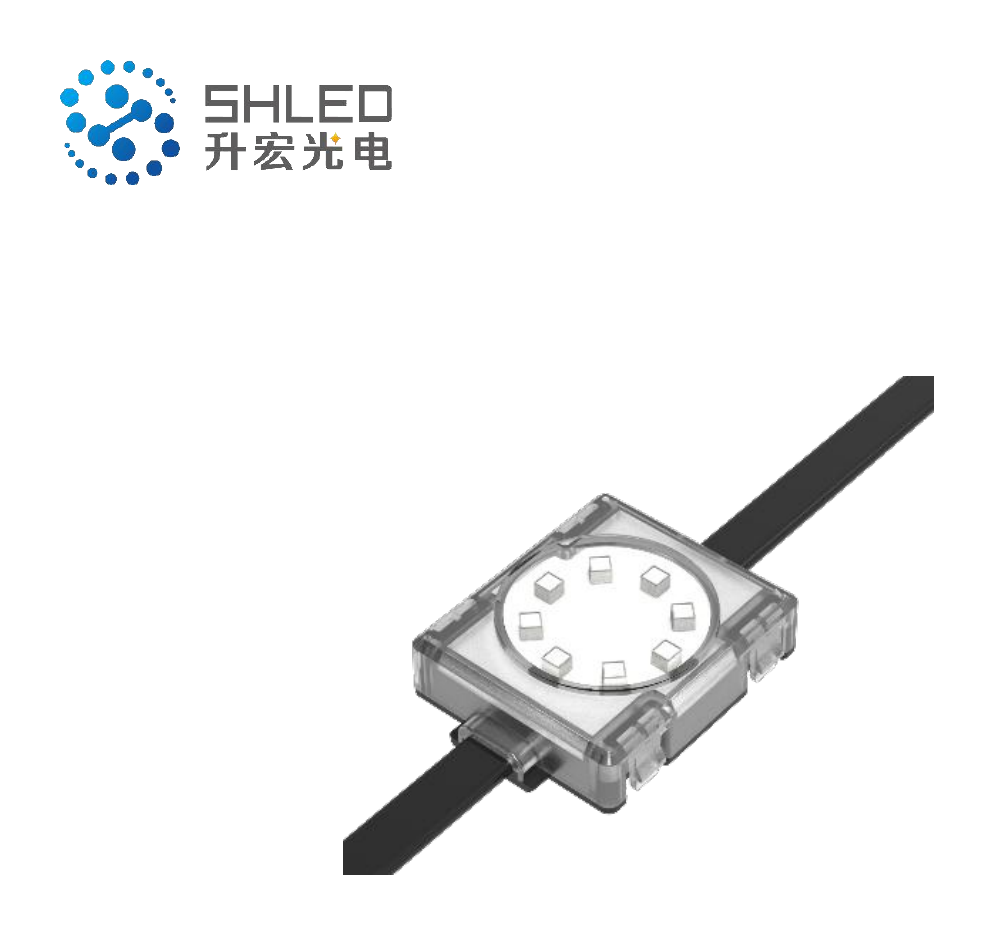

Architectural Point Light
JD34
Architectural pixel point light for facade media and outline applications, available in 24V and 48V RGB/RGBW configurations with DMX512 control, standard 6-lights-per-meter spacing and IP67 protection.
Model data
Technical specifications
Product familyArchitectural Lighting
SeriesJD
Voltage24 / 48V
Rated power1.8 / 2.0 / 3.0W
ControlDMX512
Light outputRGB / RGBW
CCT2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
IP ratingIP67
Dimensions56 × 41.5 × 14 mm
Beam angle110°
Units / m6

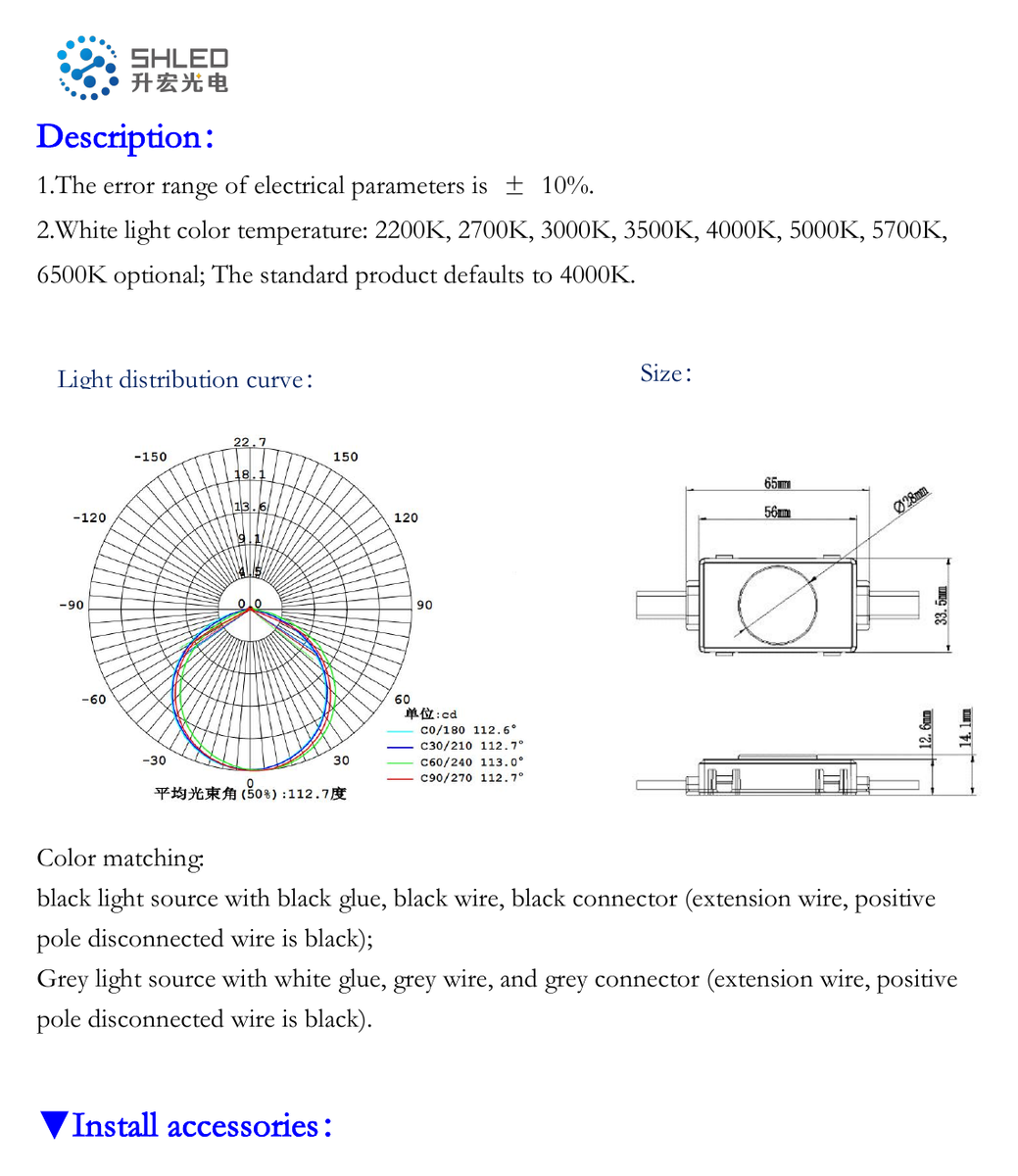

Mechanical reference
Dimension drawing & engineering notes
Configuration matrix
Available model configurations
| Light output | Voltage | Rated power | Control |
|---|---|---|---|
| RGB | 24V DC | 1.8W | DMX512 |
| RGB | 48V DC | 2W | DMX512 |
| RGBW | 24V DC | 3W | DMX512 |
| RGBW | 48V DC | 3W | DMX512 |
Engineering reference
Technical information & downloads
LED / light source
3535 RGB × 8; RGBW versions add 2835 White × 2.
Cable / connector
2 × 0.75 mm² power + 3 × 0.3 mm² DMX signal wiring.
Model data is provided for product selection and engineering reference. Final tender and project specifications should follow the latest approved datasheet, drawings, photometric data, compliance evidence and project submittal.
